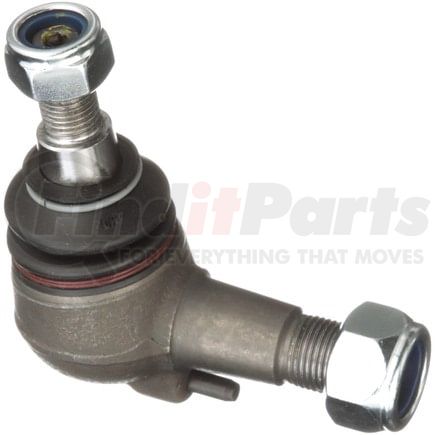

DELPHI TC520 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC520 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 3.819 IN |
| Maximum Outside Diameter | 97.00 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 97 MM |
| Type | Premium |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 1.890 IN |
| Height | 48.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.945 IN |
| Stud Thread Length | 24 MM |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Bushing Quantity | 0 |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.709 IN |
| Stud Tapered End 2 Diameter | 18 MM |
| Stud Tapered End 1 Diameter | 0.811 IN |
| Stud Tapered End 1 Diameter | 20.6 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 4.090 IN |
| Length | 104.00 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604259672 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC520 Cross References
DELPHI TC520 Fits Vehicles
- Mercedes-Benz S600 (1994-1999)
- Mercedes-Benz S500 (1994-1999)
- Mercedes-Benz S420 (1994-1999)
- Mercedes-Benz S350 (1994-1995)
- Mercedes-Benz S320 (1994-1999)
- Mercedes-Benz CL600 (1998-1999)
- Mercedes-Benz CL500 (1998-1999)
- Mercedes-Benz 600SEL (1992-1993)
- Mercedes-Benz 600SEC (1993)
- Mercedes-Benz 500SEC (1993)
- Mercedes-Benz 500SEL (1992-1993)
- Mercedes-Benz 400SEL (1993)
- Mercedes-Benz 400SE (1992)
- Mercedes-Benz 300SE (1992-1993)
- Mercedes-Benz 300SD (1992-1993)
