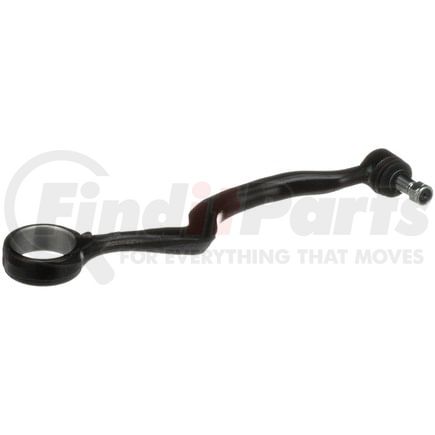

DELPHI TC512 Control Arm and Ball Joint Assembly

★★★★★ (0)
Delphi TC512 Suspension Control Arm and Ball Joint Assembly Control Arm and Ball Joint Assembly
DELPHI
Tap to view 6 more

$62.49

Limited availability at this price!

5 Day Lead Time

Get as soon as Friday, Dec 4
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details
Orders placed over the weekend will be processed the next business day.

DELPHI TC512 Part Description

Manufacturer

DELPHI

Product Description

Control Arm and Ball Joint Assembly

Features & Benefits

  • Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
  • Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
  • Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
  • Control arms utilize robot welding for consistent performance and quality
  • Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

DELPHI TC512 Specifications

Product Attributes

Item GradeStandard Replacement
Position(s)Front Right Lower Forward
Pre-GreasedYes
Grease Fitting IncludedNo
Bushings IncludedNo
Ball Joint Mounting TypeMachined
Ball Joint Stud TypeThreaded
Control Arm ConstructionCasting/Forged
Control Arm MaterialSteel
Mounting Hardware IncludedYes
Mounting Hole Quantity1
AdjustableNo
GreaseableNo
Control Arm Maximum Width4.724 IN
Control Arm Maximum Width120.00 MM
Control Arm ColorBlack
Ball Joint Thread Diameter14.00 MM
Ball Joint Stud Length61.00 MM
Control Arm Maximum Length17.323 IN
Control Arm Maximum Length440.00 MM
Mounting Hole Diameter57.90 MM
Bushing MaterialRubber
Thread DirectionClockwise (Right)
FinishPainted
Dust Boot IncludedYes
Ball Joint IncludedYes
Grade TypePremium
Boot MaterialChloroprene Rubber (CR)
Locking Nut IncludedYes
Thread Diameter14.00 MM
Boot ColorBlack
Steering TypePower
Bearing MaterialPlastic
Dust Boot MaterialChloroprene Rubber (CR)
Ball Joint Thread Diameter0.551 IN
Ball Joint Stud Length2.402 IN
Thread Diameter0.551 IN
Mounting Hole Diameter2.280 IN

Additional Information

Harmonized Tariff Code (Schedule B)8708807000
Harmonized Tariff Code (HTS)8708806590
Warranty SpecialLimited
Warranty Special UOMLT
Country of Origin (Primary)TR
UPC00689604259627
VMRS Code016001001
UNSPSC25172013

DELPHI TC512 Cross References

BrandPart Number
BMW3112 1132 160, 3112 1133 712, 3112 1137 712, 3112 1141 098, 3112 2226 582
Beck/Arnley101-5104, 102-5104
CORTECO49399444
DORMANCB14018, CB14018PR
Dorman520-736
MAS IndustriesCB14018, CB14018PR, CB9924
MEVOTECHCMK9925
MEYLE3160504333/HD
MOOGRK9925
MOOG Chassis ProductsCK9924, K9924, RK9924
Mcquay-NorrisFA4089
MevotechCMK9924, MK9924
N/ACMK90507, 520-734, GK90507, KSC4508
TRW10702, JTC1204
VAICOV20-7038-1

DELPHI TC512 Fits Vehicles

  • BMW 525i (1989-1995)
  • BMW 525iT (1993)
  • BMW 530i (1994-1995)
  • BMW 535i (1989-1993)
  • BMW 540i (1994-1995)
  • BMW M5 (1991-1993)
