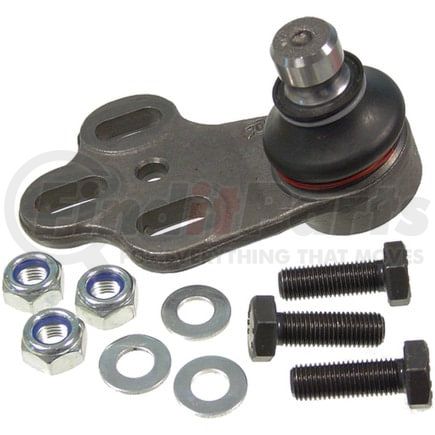

(888) 312-8812 Login SignupDELPHI TC503 Ball Joint
Tap to view 2 more
$2799
Limited availability at this price!
In Stock
Get it by Monday, Dec 29
DELPHI TC503 Part Description
DELPHI TC503 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower |
| Material | Steel |
| Maximum Outside Diameter | 2.520 IN |
| Maximum Outside Diameter | 64.00 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 64 MM |
| Type | Premium |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 1.433 IN |
| Mounting Bolt Length | 36.40 MM |
| Washers Included | Yes |
| Height | 3.425 IN |
| Height | 87.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greaseable | No |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 49.00 MM |
| Dust Boot Material | Rubber |
| Bushing Quantity | 0 |
| Mounting Bolt Shank Diameter | 22.50 MM |
| Mounting Bolt Head Diameter | 19.60 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 30.00 MM |
| Mount Plate Included | No |
| Tapered Stud | No |
| Length | 114.00 MM |
| Length | 4.490 IN |
| Mounting Bolt Shank Diameter | 0.890 IN |
| Mounting Bolt Head Diameter | 0.770 IN |
| Mounting Bolt Thread Length | 1.180 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604259535 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC503 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-4104 |
| MOOG Chassis Products | K500010, K90503, K90505 |
| Mevotech | MK90503, MK90505 |
| Audi | 893 407 366B, 893 407 366D, 895 407 366, 8A0 407 366 |
| MAS Industries | BJ12084 |
| TRW | JBJ118 |
| Import Direct | BJ07057 |
| N/A | 894407366E |
DELPHI TC503 Fits Vehicles
- Audi Coupe Quattro (1990-1991)
- Audi 90 Quattro (1991)
- Audi 90 (1991)
- Audi 80 (1991-1992)
- Audi 80 Quattro (1991-1992)
DELPHI TC503 Customer Reviews
No reviews yet
Be the first to review this product!
