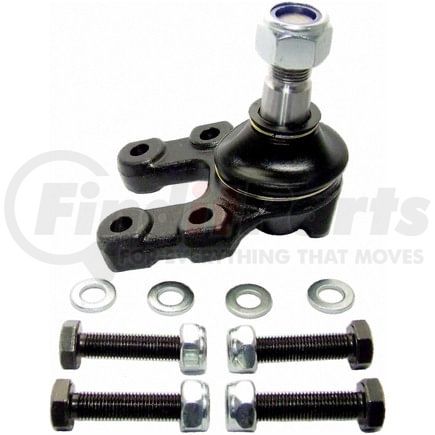

(888) 312-8812 Login SignupDELPHI TC392 Ball Joint
Tap to view 2 more
MSRP: $43.88
$3399
Save $9.89
Limited availability at this price!
In Stock
Get it by Monday, Feb 9
DELPHI TC392 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC392 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 4.488 IN |
| Maximum Outside Diameter | 114.00 MM |
| Color | Black |
| Stud Thread Diameter | 0.709 IN |
| Stud Thread Diameter | 18 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 89 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 1.772 IN |
| Mounting Bolt Length | 45.00 MM |
| Washers Included | Yes |
| Height | 4.272 IN |
| Height | 108.50 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 4 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 1.083 IN |
| Stud Thread Length | 27.5 MM |
| Wrench Size | 17mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 37.00 MM |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 0.394 IN |
| Mounting Bolt Shank Diameter | 10.00 MM |
| Mounting Bolt Head Diameter | 0.748 IN |
| Mounting Bolt Head Diameter | 19.00 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 1.024 IN |
| Mounting Bolt Thread Length | 26.00 MM |
| Mounting Bolt Thread Diameter | 10.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.874 IN |
| Stud Tapered End 2 Diameter | 22.2 MM |
| Stud Tapered End 1 Diameter | 0.772 IN |
| Stud Tapered End 1 Diameter | 19.6 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 114.00 MM |
| Length | 4.490 IN |
| Mounting Bolt Thread Diameter | 0.390 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604259351 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC392 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-3844, 101-8018 |
| CORTECO | 49395848 |
| DORMAN | B9347, 531-388, B9347XL |
| Datsun/Nissan | 1954431, 40160-0F000, 40160-50W00, 40160-50W01, 40160-50W10, 40160-50W25, 40160-93G00, 40160-93G25, 40160-93G26, 40161-50W01, 50160-50W10 |
| Deeza | NI-F201 |
| Ford | 1954431 |
| Import Direct | BJ11001 |
| MAS Industries | B9347, B9347XL |
| MOOG Chassis Products | K9347 |
| Mcquay-Norris | FA1530 |
| Mevotech | MK9347 |
| N/A | GK9347, 610.4201 |
| Raybestos Chassis | 505-1120 |
| TRW | JBJ327 |
DELPHI TC392 Fits Vehicles
- Nissan 720 (1983-1986)
- Nissan Pickup (1995-1997)
- Nissan Pathfinder (1987-1995)
- Nissan D21 (1986-1994)
