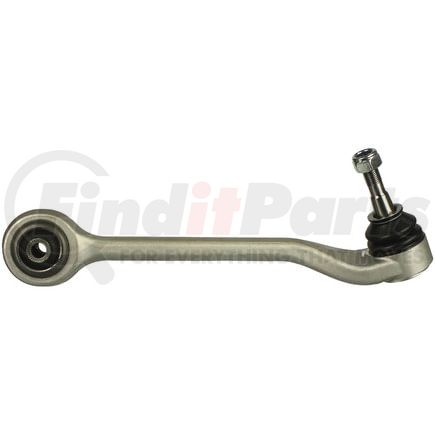

(888) 312-8812 Login SignupDELPHI TC3015 Control Arm and Ball Joint Assembly
Tap to view 2 more
$8299
Limited availability at this price!
In Stock
Get it by Wednesday, Feb 18
DELPHI TC3015 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC3015 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower Rearward |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 2.126 IN |
| Control Arm Maximum Width | 54.00 MM |
| Control Arm Color | Gray |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 95.00 MM |
| Control Arm Maximum Length | 14.016 IN |
| Control Arm Maximum Length | 356.00 MM |
| Mounting Hole Diameter | 12.10 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Uncoated |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Stud Length | 3.740 IN |
| Thread Diameter | 0.551 IN |
| Mounting Hole Diameter | 0.476 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604259207 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC3015 Cross References
| Brand | Part Number |
|---|---|
| BMW | 3110 6770 690, 3112 2347 982, 3112 6774 828 |
| Beck/Arnley | 102-7788 |
| DORMAN | CB14324, 524-482, CB14324PR |
| MAS Industries | CB14324 |
| MOOG | RK622142 |
| Mevotech | CMS101109, MS101109 |
| N/A | 524-482, 622.3489 |
| VAICO | V20-1933 |
DELPHI TC3015 Fits Vehicles
- BMW 528i xDrive (2009-2010)
- BMW 535i xDrive (2009-2010)
- BMW 528xi (2008)
- BMW 535xi (2008)
- BMW 525xi (2006-2007)
- BMW 530xi (2006-2007)
