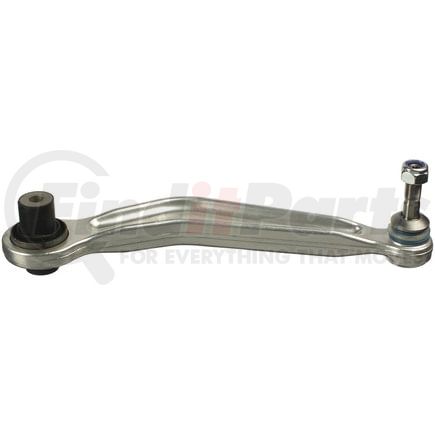

(888) 312-8812 Login SignupDELPHI TC2953 Control Arm and Ball Joint Assembly
Tap to view 2 more
MSRP: $87.75
$7199
Save $15.76
Limited availability at this price!
In Stock
Get it by Thursday, Feb 19
DELPHI TC2953 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC2953 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Rear Right Lower, Rear Right Upper Forward, Rear Right Upper Rearward. For the position specific to your vehicle, refer to the Applications. |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 3.701 IN |
| Control Arm Maximum Width | 94.00 MM |
| Control Arm Color | Gray |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 86.00 MM |
| Control Arm Maximum Length | 360.00 MM |
| Control Arm Maximum Length | 14.173 IN |
| Mounting Hole Diameter | 12.20 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Uncoated |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Stud Length | 3.386 IN |
| Thread Diameter | 0.551 IN |
| Mounting Hole Diameter | 0.480 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604259078 |
| VMRS Code | 016008142 |
| UNSPSC | 25172013 |
DELPHI TC2953 Cross References
| Brand | Part Number |
|---|---|
| BMW | 33 30 6 772 242, 33 32 6 767 760, 33 32 6 770 776, 3332 2347 990, 3332 6758 142, 3332 6769 972, 3332 6774 794 |
| Beck/Arnley | 101-5026, 102-5026, 102-7749 |
| CORTECO | 49398944 |
| DORMAN | 521-498, CB14528, CB14528PR |
| MAS Industries | CB14528 |
| MEYLE | 316 050 0055 |
| MOOG Chassis Products | K620133, RK620132, RK620133 |
| Mevotech | CMS101021 |
| N/A | CK620133, 521-498, CB14528PR, 622.234048 |
| TRW | JTC1121 |
| URO | 33322347990 |
| VAICO | V20-0549 |
DELPHI TC2953 Fits Vehicles
- BMW 535i xDrive (2009-2010)
- BMW 528i xDrive (2009-2010)
- BMW 535xi (2008)
- BMW 535i (2008-2010)
- BMW 528xi (2008)
- BMW 528i (2008-2010)
- BMW Alpina B7 (2007-2008)
- BMW M6 (2006-2010)
- BMW M5 (2006-2010)
- BMW 550i (2006-2010)
- BMW 650i (2006-2010)
- BMW 525xi (2006-2007)
- BMW 530xi (2006-2007)
- BMW 530i (2006-2007)
- BMW 750Li (2006-2008)
- BMW 750i (2006-2008)
- BMW 760i (2004-2006)
- BMW 525i (2005-2007)
- BMW 645Ci (2004-2005)
- BMW 760Li (2003-2008)
- BMW 745Li (2002-2005)
- BMW 745i (2002-2005)
