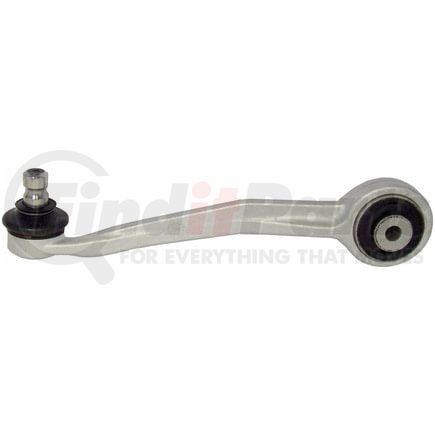

(888) 312-8812 Login SignupDELPHI TC2335 Control Arm and Ball Joint Assembly
Tap to view 2 more
MSRP: $84.46
$6149
Save $22.97
Limited availability at this price!
In Stock
Get it by Wednesday, Feb 11
DELPHI TC2335 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC2335 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Upper Rearward |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Grooved |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 1.772 IN |
| Control Arm Maximum Width | 45.00 MM |
| Control Arm Color | Gray |
| Ball Joint Thread Diameter | 16.0 MM |
| Ball Joint Stud Length | 40.00 MM |
| Control Arm Maximum Length | 11.260 IN |
| Control Arm Maximum Length | 286.00 MM |
| Mounting Hole Diameter | 10.20 MM |
| Bushing Material | Rubber |
| Bushing Color | Black |
| Finish | Uncoated |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Stud Length | 1.575 IN |
| Mounting Hole Diameter | 0.402 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604257036 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
DELPHI TC2335 Cross References
| Brand | Part Number |
|---|---|
| Audi | 8K0 407 509 A, 8K0407509N |
| Beck/Arnley | 101-7514, 102-7514 |
| CORTECO | 49399180 |
| DORMAN | 521-253, CB12097, CB12097PR |
| Dorman | 522-109 |
| MAS Industries | CB12097, CB12097PR |
| MEYLE | 1160500166/HD |
| MOOG | RK621000 |
| MOOG Chassis Products | CK621000, K621000, RK621000 |
| Mevotech | CMS70143, MS70143 |
| N/A | GS70143, 52-1253 |
| TRW | JTC1181, JTC1288 |
| VAICO | V10-9792-1 |
DELPHI TC2335 Fits Vehicles
- Audi SQ5 (2014-2017)
- Audi RS5 (2013-2015)
- Audi Q5 (2012-2017)
- Audi S4 (2010-2016)
- Audi A5 (2008-2016)
- Audi A4 Quattro (2009-2016)
- Audi A4 (2009-2016)
- Audi S5 (2008-2017)
- Audi A5 Quattro (2008-2017)
