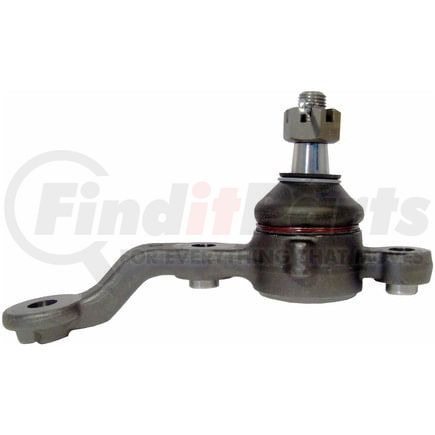

(888) 312-8812 Login SignupDELPHI TC2318 Ball Joint
Tap to view 2 more
$7199
Limited availability at this price!
1 Day Lead Time
Get it by Tuesday, Feb 24
DELPHI TC2318 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC2318 Specifications
Product Attributes
| Position(s) | Front Right Lower |
| Item Grade | Standard Replacement |
| Material | Steel |
| Maximum Outside Diameter | 2.354 IN |
| Maximum Outside Diameter | 59.80 MM |
| Color | Gray |
| Stud Thread Diameter | 0.551 IN |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 73 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 4.567 IN |
| Height | 116.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.787 IN |
| Stud Thread Length | 20 MM |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 95.00 MM |
| Dust Boot Material | Rubber |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.748 IN |
| Stud Tapered End 2 Diameter | 19 MM |
| Stud Tapered End 1 Diameter | 0.634 IN |
| Stud Tapered End 1 Diameter | 16.1 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 8.010 IN |
| Length | 203.45 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604256923 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC2318 Cross References
DELPHI TC2318 Fits Vehicles
- Lexus SC430 (2002-2010)
- Lexus GS430 (2001-2005)
- Lexus GS400 (1998-2000)
- Lexus GS300 (1998-2005)
