Position(s)	Front Lower
Item Grade	Standard Replacement
Material	Steel
Maximum Outside Diameter	3.346 IN
Maximum Outside Diameter	85.00 MM
Castle Nut Included	Yes
Grease Fitting Included	No
Suspension Grade Type	Standard
Bushings Included	No
Dust Boot Included	Yes
Ball Joint Assembly	Yes
Width	85 MM
Type	Premium
Cotter Pin Included	Yes
Cotter Pin Hole	Yes
Mounting Hardware Included	Yes
Washers Included	No
Height	1.850 IN
Height	47.00 MM
Nuts Included	Yes
Mounting Hole Quantity	2
Adjustable	No
Greaseable	No
Stud Thread Length	0.787 IN
Stud Thread Length	20 MM
Stud Type	Threaded
Mounting Type	Bolt-In
Distance Between Mounting Holes	80.00 MM
Dust Boot Material	Rubber
Bushing Quantity	0
Mounting Bolt Shank Diameter	12.20 MM
Mount Plate Included	No
Tapered Stud	Yes
Stud Tapered End 2 Diameter	0.593 IN
Stud Tapered End 2 Diameter	15.05 MM
Stud Tapered End 1 Diameter	0.673 IN
Stud Tapered End 1 Diameter	17.1 MM
Stud Thread Pitch	1.25 MM
Length	115.00 MM
Length	4.530 IN
Mounting Bolt Shank Diameter	0.480 IN

Harmonized Tariff Code (HTS)	8708806590
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
Harmonized Tariff Code (Schedule B)	8708807000
Country of Origin (Primary)	TR
UPC	00689604254943
VMRS Code	016001015
UNSPSC	25174203

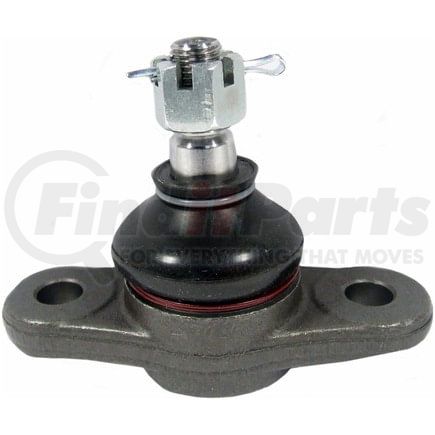

Delphi TC1990 - Ball Joint

Ball Joint
