DELPHI TC1968 Part Description
Manufacturer
Product Description

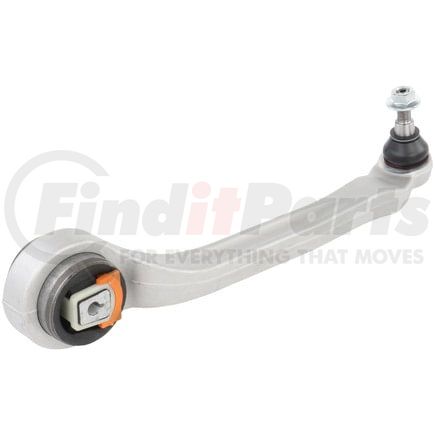

Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1968 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Lower Rearward |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 5.748 IN |
| Control Arm Maximum Width | 146.00 MM |
| Control Arm Color | Gray |
| Ball Joint Stud Length | 3.740 IN |
| Ball Joint Stud Length | 95.00 MM |
| Control Arm Maximum Length | 18.307 IN |
| Control Arm Maximum Length | 465.00 MM |
| Mounting Hole Diameter | 0.476 IN |
| Mounting Hole Diameter | 12.10 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Uncoated |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604254844 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC1968 Cross References
| Brand | Part Number |
|---|---|
| Audi | 4E0 407 693 F, 4E0 407 693 M, 4E0 407 693C, 4E0 407 693N |
| Beck/Arnley | 101-5978, 102-5978 |
| CORTECO | 49398747 |
| DORMAN | CB12123, CB12123PR |
| Dorman | 521-749 |
| MAS Industries | CB12123 |
| MEYLE | 1160500065/HD |
| MOOG | RK620454 |
| MOOG Chassis Products | K620454, RK620454 |
| Mevotech | CMS70134 |
| N/A | GS70134 |
| TRW | JTC1039 |
| VAICO | V100690 |
| Volkswagen | 4E0 407 693 F, 4E0 407 693C, 4E0 407 693N |
DELPHI TC1968 Fits Vehicles
- Audi S8 (2003)
- Volkswagen Phaeton (2004-2006)
- Audi A8 Quattro (2004-2010)
