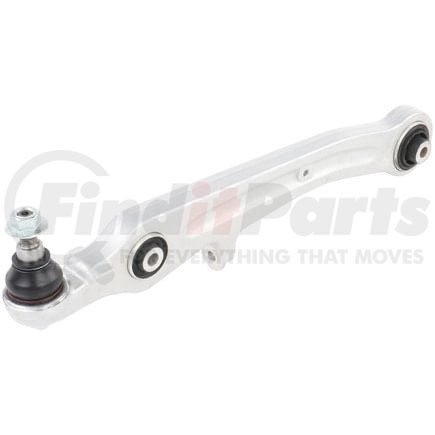

(888) 312-8812 Login SignupDELPHI TC1946 Control Arm and Ball Joint Assembly
Tap to view 23 more
MSRP: $205.80
$18399
Save $21.81
Limited availability at this price!
In Stock
Get it by Thursday, Feb 5
DELPHI TC1946 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1946 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower Forward |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 4 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 5.748 IN |
| Control Arm Maximum Width | 146.00 MM |
| Control Arm Color | Gray |
| Ball Joint Stud Length | 3.780 IN |
| Ball Joint Stud Length | 96.00 MM |
| Control Arm Maximum Length | 20.709 IN |
| Control Arm Maximum Length | 526.00 MM |
| Mounting Hole Diameter | 0.244 IN |
| Mounting Hole Diameter | 6.20 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Uncoated |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604254691 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC1946 Cross References
| Brand | Part Number |
|---|---|
| Audi | 4E0 407 151 G, 4E0 407 151 J, 4E0 407 151 L, 4E0407151K |
| Beck/Arnley | 101-5970, 102-5970 |
| CORTECO | 49398725, 49398924 |
| DORMAN | 521-755, CB12085, CB12085PR |
| Dorman | 52-1755 |
| MAS Industries | CB12085, CB12085PR |
| MEYLE | 1160500067/HD |
| MOOG Chassis Products | K620453, RK620453 |
| Mcquay-Norris | FA3362 |
| Mevotech | CMS70133 |
| N/A | GS70133 |
| Raybestos Chassis | 507-1836 |
| TRW | JTC1036, JTC1224 |
| URO | 4E0407151L |
| VAICO | V10-0689 |
| Volkswagen | 4E0 407 151 J, 4E0 407 151 L, 4E0407151K |
DELPHI TC1946 Fits Vehicles
- Audi S8 (2007-2009)
- Volkswagen Phaeton (2004-2006)
- Audi A8 Quattro (2003-2010)
DELPHI TC1946 Customer Reviews
No reviews yet
Be the first to review this product!
DELPHI TC1946 Questions & Answers
No questions yet
Be the first to ask a question about this product!
