(888) 312-8812 Login SignupDELPHI TC1878 Control Arm and Ball Joint Assembly
Tap to view 7 more
MSRP: $190.88
$17949
Save $11.39
Limited availability at this price!
In Stock
Get as soon as Tuesday, Nov 24
DELPHI TC1878 Part Description
Manufacturer
Product Description

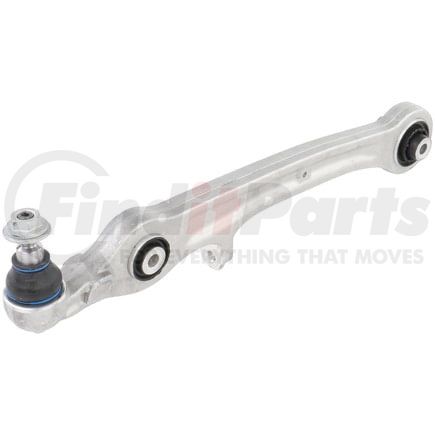

Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1878 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower Forward |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 2.362 IN |
| Control Arm Maximum Width | 60.00 MM |
| Control Arm Color | Gray |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 80.00 MM |
| Control Arm Maximum Length | 20.866 IN |
| Control Arm Maximum Length | 530.00 MM |
| Mounting Hole Diameter | 12.20 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Uncoated |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Stud Length | 3.150 IN |
| Thread Diameter | 0.551 IN |
| Mounting Hole Diameter | 0.480 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited |
| Warranty Special UOM | LT |
| UPC | 00689604254349 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
DELPHI TC1878 Cross References
| Brand | Part Number |
|---|---|
| Audi | 4F0 407 151, 4F0 407 151 A |
| Beck/Arnley | 101-5963, 102-5963 |
| CORTECO | 49398478 |
| DORMAN | CB12035, CB12035PR |
| Deeza | AD-H107 |
| Dorman | 520-978 |
| MAS Industries | CB12035, CB12035PR |
| MEYLE | 1160500043/HD |
| MOOG Chassis Products | CK620452, K620452, RK620452 |
| Mcquay-Norris | FA4520 |
| Mevotech | CMS70108, MS70108 |
| N/A | GS70108, KSC6211 |
| Raybestos Chassis | 507-1388 |
| TRW | JTC1089 |
| VAICO | V10-0626 |
DELPHI TC1878 Fits Vehicles
- Audi A6 (2006-2011)
- Audi A6 Quattro (2005-2011)
- Audi S6 (2007-2011)
