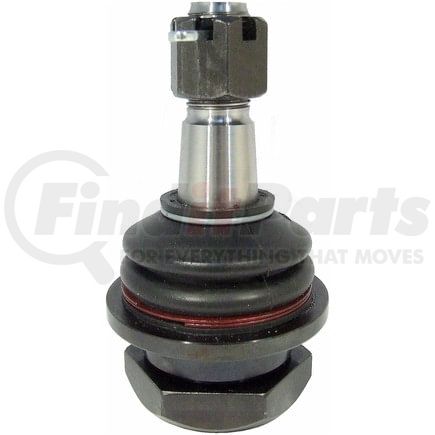

(888) 312-8812 Login SignupDELPHI TC1789 Ball Joint
Tap to view 2 more
MSRP: $40.09
$3349
Save $6.60
Limited availability at this price!
In Stock
Get it by Friday, Feb 13
DELPHI TC1789 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1789 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 1.803 IN |
| Maximum Outside Diameter | 45.80 MM |
| Color | Black |
| Stud Thread Diameter | 0.63 IN |
| Stud Thread Diameter | 16 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 74.3 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 1.488 IN |
| Mounting Bolt Length | 37.80 MM |
| Washers Included | No |
| Height | 3.720 IN |
| Height | 94.50 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.906 IN |
| Stud Thread Length | 23 MM |
| Wrench Size | 19mm |
| Stud Type | Threaded |
| Distance Between Mounting Holes | 25.00 MM |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 0.472 IN |
| Mounting Bolt Shank Diameter | 12.00 MM |
| Mounting Bolt Head Diameter | 0.866 IN |
| Mounting Bolt Head Diameter | 22.00 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 1.181 IN |
| Mounting Bolt Thread Length | 30.00 MM |
| Mounting Bolt Thread Diameter | 12.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.811 IN |
| Stud Tapered End 2 Diameter | 20.6 MM |
| Stud Tapered End 1 Diameter | 0.663 IN |
| Stud Tapered End 1 Diameter | 16.85 MM |
| Stud Thread Pitch | 1.5 MM |
| Mounting Bolt Thread Diameter | 0.470 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604253908 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC1789 Cross References
| Brand | Part Number |
|---|---|
| CORTECO | 49395916 |
| DORMAN | 533-009, BJ69145, BJ69145XL |
| Datsun/Nissan | 40160-2S601 |
| Deeza | NI-G616 |
| Import Direct | BJ06011 |
| MAS Industries | BJ69145 |
| MOOG | K80591 |
| MOOG Chassis Products | K80591 |
| Mcquay-Norris | FA2235 |
| Mevotech | MK80591 |
| N/A | 401602S685, 401609Z510, 401602S686, GK80591, BJ69145XL, 610.42014 |
| QUICK STEER | K80591 |
| Raybestos Chassis | 505-1323 |
| TRW | JBJ923 |
DELPHI TC1789 Fits Vehicles
- Nissan Xterra (2000-2004)
- Nissan Frontier (1998-2004)
