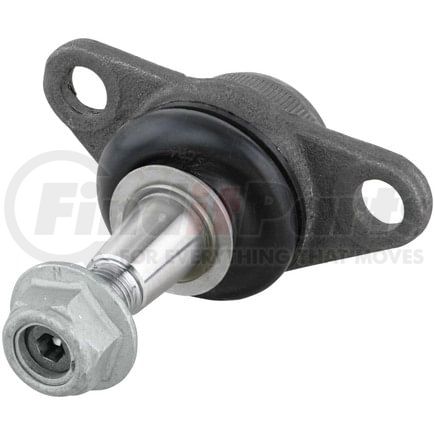

(888) 312-8812 Login SignupDELPHI TC1519 Ball Joint
Tap to view 23 more
$2599
Limited availability at this price!
In Stock
Get it by Monday, Feb 23
DELPHI TC1519 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1519 Specifications
Product Attributes
| Position(s) | Front Lower |
| Item Grade | Standard Replacement |
| Material | Steel |
| Maximum Outside Diameter | 3.661 IN |
| Maximum Outside Diameter | 93.00 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 93 MM |
| Type | Premium |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 2.362 IN |
| Height | 60.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.886 IN |
| Stud Thread Length | 22.5 MM |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 75.00 MM |
| Dust Boot Material | Rubber |
| Bushing Quantity | 0 |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.587 IN |
| Stud Tapered End 2 Diameter | 14.9 MM |
| Stud Tapered End 1 Diameter | 0.787 IN |
| Stud Tapered End 1 Diameter | 20 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 98.00 MM |
| Length | 3.860 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604252963 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC1519 Cross References
DELPHI TC1519 Fits Vehicles
- Volvo S60 (2007-2009)
- Volvo XC90 (2003-2014)
