(888) 312-8812 Login SignupDELPHI TC1515 Ball Joint
Tap to view 2 more
SHIPS TODAY
MSRP: $41.09
$3049
Save $10.60
Limited availability at this price!
In Stock
Get it by Wednesday, Jun 24
DELPHI TC1515 Part Description
Manufacturer
Product Description

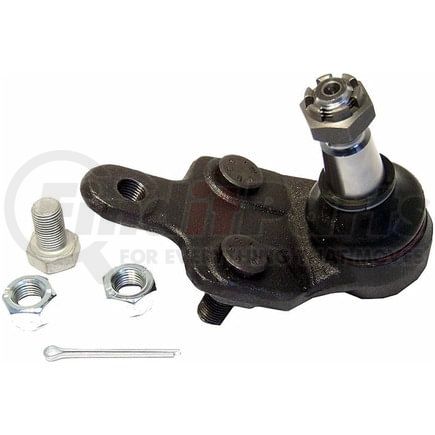

Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1515 Specifications
Product Attributes
| Position(s) | Front Right Lower |
| Item Grade | Standard Replacement |
| Material | Steel |
| Maximum Outside Diameter | 1.764 IN |
| Maximum Outside Diameter | 44.80 MM |
| Color | Gray |
| Stud Thread Diameter | 0.551 IN |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 71.5 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 1.063 IN |
| Mounting Bolt Length | 27.00 MM |
| Washers Included | Yes |
| Height | 3.626 IN |
| Height | 92.10 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.728 IN |
| Stud Thread Length | 18.5 MM |
| Wrench Size | 19mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 41.50 MM |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 0.472 IN |
| Mounting Bolt Shank Diameter | 12.00 MM |
| Mounting Bolt Head Diameter | 0.866 IN |
| Mounting Bolt Head Diameter | 22.00 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 0.787 IN |
| Mounting Bolt Thread Length | 20.00 MM |
| Mounting Bolt Thread Diameter | 12.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.827 IN |
| Stud Tapered End 2 Diameter | 21 MM |
| Stud Tapered End 1 Diameter | 0.689 IN |
| Stud Tapered End 1 Diameter | 17.5 MM |
| Stud Thread Pitch | 1.5 MM |
| Mounting Bolt Thread Diameter | 0.470 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604252925 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC1515 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-4884 |
| CORTECO | 49400369 |
| DORMAN | B90347, B90347XL, 536-670 |
| Deeza | TY-F606 |
| Dorman | 524-154 |
| Import Direct | BJ07012 |
| MAS Industries | B90347 |
| MOOG | K90347 |
| MOOG Chassis Products | K90347 |
| Mcquay-Norris | FA2209 |
| Mevotech | MK90347, MS20246 |
| N/A | GK90347, B90347XL, 610.44024 |
| Raybestos Chassis | 505-1303 |
| TRW | JBJ7533 |
| Toyota | 43330-09160, 43330-09560, 43330-29405, 43330-29615 |
DELPHI TC1515 Fits Vehicles
- Lexus RX350 (2007-2009)
- Lexus RX400h (2006-2008)
- Toyota Solara (2004-2008)
- Lexus RX330 (2004-2006)
- Toyota Sienna (2004-2010)
- Lexus ES330 (2004-2006)
- Toyota Camry (2002-2006)
- Toyota Highlander (2001-2007)
- Lexus ES300 (2002-2003)
