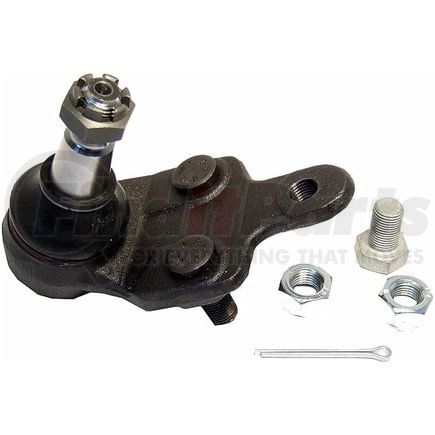

DELPHI TC1514 Ball Joint

★★★★★ (0)

$41.49

Limited availability at this price!

In Stock

Get as soon as Monday, Nov 23
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details

DELPHI TC1514 Part Description

Manufacturer

DELPHI

Product Description

Ball Joint

Features & Benefits

  • Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
  • Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
  • Delphi machines to micron tolerances to guarantee durability and smooth joint operation
  • Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

DELPHI TC1514 Specifications

Product Attributes

Position(s)Front Left Lower
Item GradeStandard Replacement
MaterialSteel
Maximum Outside Diameter1.764 IN
Maximum Outside Diameter44.80 MM
ColorGray
Stud Thread Diameter0.551 IN
Stud Thread Diameter14 MM
Castle Nut IncludedYes
Grease Fitting IncludedNo
Suspension Grade TypeStandard Replacement
Bushings IncludedNo
Dust Boot IncludedYes
Ball Joint AssemblyYes
Width71.5 MM
Cotter Pin IncludedYes
Cotter Pin HoleYes
Mounting Hardware IncludedYes
Mounting Bolt Length1.063 IN
Mounting Bolt Length27.00 MM
Washers IncludedYes
Height3.626 IN
Height92.10 MM
Nuts IncludedYes
Mounting Hole Quantity3
AdjustableNo
GreaseableNo
Stud Thread Length0.728 IN
Stud Thread Length18.5 MM
Wrench Size19mm
Stud TypeThreaded
Mounting TypeBolt-In
Distance Between Mounting Holes41.50 MM
Dust Boot MaterialRubber
Mounting Bolt Shank Diameter0.472 IN
Mounting Bolt Shank Diameter12.00 MM
Mounting Bolt Head Diameter0.866 IN
Mounting Bolt Head Diameter22.00 MM
Mounting Bolts IncludedYes
Mounting Bolt Thread Pitch1.25 MM
Mounting Bolt Thread Length0.787 IN
Mounting Bolt Thread Length20.00 MM
Mounting Bolt Thread Diameter12.00 MM
Mount Plate IncludedNo
Tapered StudYes
Stud Tapered End 2 Diameter0.827 IN
Stud Tapered End 2 Diameter21 MM
Stud Tapered End 1 Diameter0.689 IN
Stud Tapered End 1 Diameter17.5 MM
Stud Thread Pitch1.5 MM
Mounting Bolt Thread Diameter0.470 IN

Additional Information

Harmonized Tariff Code (Schedule B)8708807000
Harmonized Tariff Code (HTS)8708806590
Warranty SpecialLimited
Warranty Special UOMLT
Country of Origin (Primary)TR
UPC00689604252918
VMRS Code016001015
UNSPSC25174203

DELPHI TC1514 Cross References

BrandPart Number
Beck/Arnley101-4883
CORTECO49400966
DORMANB90346, B90346XL, 539-072
DeezaTY-F608
Dorman524-153
Import DirectBJ07011
MAS IndustriesB90346
MOOGK90346
MOOG Chassis ProductsK90346
Mcquay-NorrisFA2208
MevotechMK90346, MS20247
N/A4334009010S1, GK90346, B90346XL, 610.44023, KBJ4090
Raybestos Chassis505-1302
TRWJBJ7532
Toyota43330-09010, 43340-09010, 43340-29175, 43340-29215

DELPHI TC1514 Fits Vehicles

  • Lexus ES300 (2002-2003)
  • Lexus ES330 (2004-2006)
  • Lexus RX330 (2004-2006)
  • Lexus RX350 (2007-2009)
  • Lexus RX400h (2006-2008)
  • Toyota Camry (2002-2006)
  • Toyota Highlander (2001-2007)
  • Toyota Sienna (2004-2010)
  • Toyota Solara (2004-2008)
