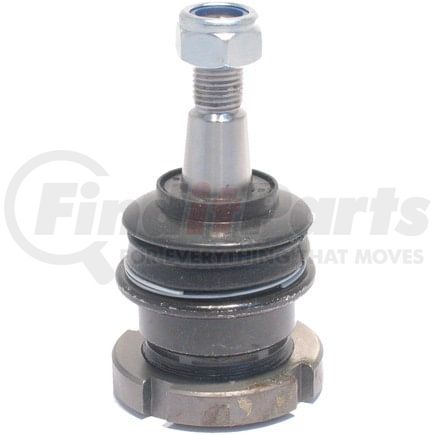

DELPHI TC1369 Part Description
Manufacturer
Product Description
Ball Joint
Features & Benefits
- Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
- Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1369 Specifications
Product Attributes
| Position(s) | Front Lower |
| Item Grade | Standard Replacement |
| Material | Steel |
| Maximum Outside Diameter | 2.205 IN |
| Maximum Outside Diameter | 56.00 MM |
| Castle Nut Included | No |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard Replacement |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 56 MM |
| Type | Premium |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | No |
| Height | 2.205 IN |
| Height | 56.00 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.925 IN |
| Stud Thread Length | 23.5 MM |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Bushing Quantity | 0 |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.642 IN |
| Stud Tapered End 2 Diameter | 16.3 MM |
| Stud Tapered End 1 Diameter | 0.799 IN |
| Stud Tapered End 1 Diameter | 20.3 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 106.00 MM |
| Length | 4.170 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604252079 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC1369 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-5568 |
| CORTECO | 49398993 |
| DORMAN | BJ28155, BJ28155XL, 535-586 |
| Deeza | MB-F202 |
| Import Direct | BJ07020 |
| MAS Industries | BJ28155 |
| MOOG | K500005 |
| MOOG Chassis Products | K500005 |
| Mcquay-Norris | FA2299 |
| Mercedes-Benz | 163 330 00 35, 163 330 01 35, A163 330 0035, A163 330 0135 |
| Mevotech | MS10502 |
| N/A | GS10502 |
| Raybestos Chassis | 505-1368 |
| TRW | JBJ764 |
| VAICO | V30-7280 |
DELPHI TC1369 Fits Vehicles
- Mercedes-Benz ML55 AMG (2000-2003)
- Mercedes-Benz ML500 (2002-2005)
- Mercedes-Benz ML430 (1999-2001)
- Mercedes-Benz ML350 (2003-2005, 2010)
- Mercedes-Benz ML320 (1998-2003)
