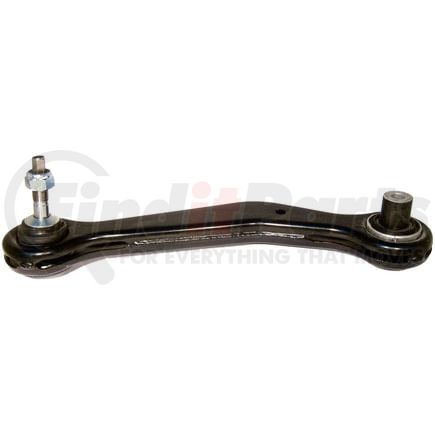

(888) 312-8812 Login SignupDELPHI TC1346 Control Arm and Ball Joint Assembly
Tap to view 2 more
MSRP: $111.71
$10049
Save $11.22
Limited availability at this price!
In Stock
Get it by Monday, Feb 16
DELPHI TC1346 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1346 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Rear Left Upper Rearward |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 3.937 IN |
| Control Arm Maximum Width | 100.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 75.00 MM |
| Control Arm Maximum Length | 14.961 IN |
| Control Arm Maximum Length | 380.00 MM |
| Mounting Hole Diameter | 12.00 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Stud Length | 2.953 IN |
| Thread Diameter | 0.551 IN |
| Mounting Hole Diameter | 0.472 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604251980 |
| VMRS Code | 016008121 |
| UNSPSC | 25172013 |
DELPHI TC1346 Cross References
| Brand | Part Number |
|---|---|
| BMW | 3332 1095 411, 3332 6768 273, 3332 6770 747, 3332 6770 859 |
| Beck/Arnley | 101-6160, 102-6160 |
| CORTECO | 49398634 |
| DORMAN | CB14537, CB14537PR |
| Deeza | BW-H239 |
| Dorman | 521-111 |
| MAS Industries | CB14537, CB14537PR |
| MEYLE | 316 035 0008 |
| MOOG Chassis Products | K620627, RK620627 |
| Mcquay-Norris | FA3275 |
| Mevotech | CMS10199 |
| N/A | GS10199 |
| Raybestos Chassis | 502-1295 |
| TRW | JTC1392 |
| VAICO | V20-0562 |
DELPHI TC1346 Fits Vehicles
- BMW X5 (2000-2006)
DELPHI TC1346 Customer Reviews
No reviews yet
Be the first to review this product!
DELPHI TC1346 Questions & Answers
No questions yet
Be the first to ask a question about this product!
