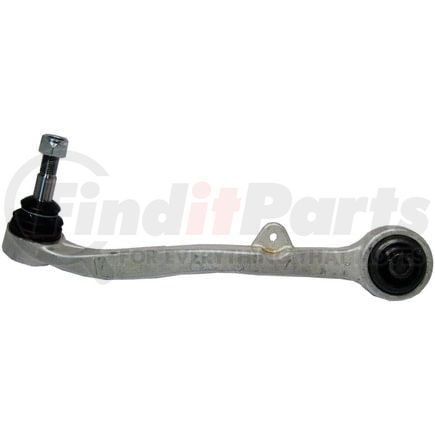

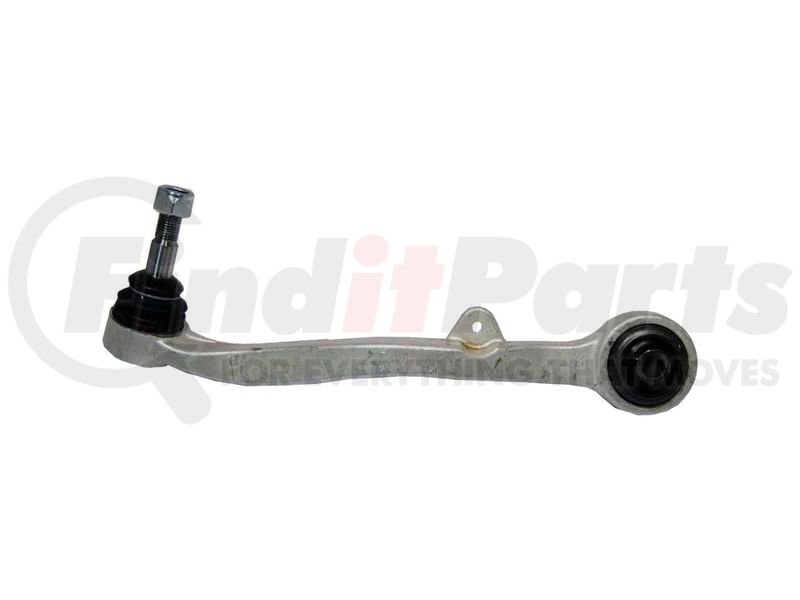

DELPHI TC1322 Control Arm and Ball Joint Assembly

★★★★★ (0)

$120.99

Limited availability at this price!

5 Day Lead Time

Get as soon as Wednesday, Dec 2
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details
This item will ship about 5 days after the date of purchase.

DELPHI TC1322 Part Description

Manufacturer

DELPHI

Product Description

Control Arm and Ball Joint Assembly

Features & Benefits

  • Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
  • Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
  • Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
  • Control arms utilize robot welding for consistent performance and quality
  • Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

DELPHI TC1322 Specifications

Product Attributes

Item GradeStandard Replacement
Position(s)Front Left Lower Rearward
Pre-GreasedYes
Grease Fitting IncludedNo
Bushings IncludedYes
Ball Joint Stud TypeThreaded
Control Arm ConstructionCasting/Forged
Control Arm MaterialAluminum
Mounting Hardware IncludedYes
Mounting Hole Quantity1
AdjustableNo
GreaseableNo
Control Arm Maximum Width2.953 IN
Control Arm Maximum Width75.00 MM
Control Arm ColorGray
Ball Joint Thread Diameter14.00 MM
Ball Joint Stud Length84.50 MM
Control Arm Maximum Length13.780 IN
Control Arm Maximum Length350.00 MM
Mounting Hole Diameter12.20 MM
Bushing MaterialRubber
Thread DirectionClockwise (Right)
Bushing ColorBlack
FinishUncoated
Dust Boot IncludedYes
Ball Joint IncludedYes
Grade TypePremium
Boot MaterialChloroprene Rubber (CR)
Locking Nut IncludedYes
Thread Diameter14.00 MM
Boot ColorBlack
Steering TypePower
Bearing MaterialPlastic
Dust Boot MaterialChloroprene Rubber (CR)
Ball Joint Thread Diameter0.551 IN
Ball Joint Stud Length3.327 IN
Thread Diameter0.551 IN
Mounting Hole Diameter0.480 IN

Additional Information

Harmonized Tariff Code (Schedule B)8708807000
Harmonized Tariff Code (HTS)8708806590
Warranty SpecialLimited
Warranty Special UOMLT
Country of Origin (Primary)TR
UPC00689604251836
VMRS Code016001001
UNSPSC25172013

DELPHI TC1322 Cross References

BrandPart Number
BMW31 12 6 770 121, 31 12 6 770 771, 31 12 6 770 837, 31 12 6 777 937, 31 12 6 777 939, 3112 6755 835, 31122347985
Beck/Arnley101-5961, 102-5961
CORTECO49399544
DORMANCB14133, CB14133PR
DeezaBW-H112
Dorman520-937
MAS IndustriesCB14133
MEYLE316 050 0013, 3160500105HD
MOOGRK620121
MOOG Chassis ProductsK620121, RK620121
Mcquay-NorrisFA4485
MevotechCMS10186
Raybestos Chassis502-1158
TRWJTC1010, JTC1298
VAICOV20-0537

DELPHI TC1322 Fits Vehicles

  • BMW 645Ci (2004-2005)
  • BMW 650i (2006-2010)
  • BMW 745Li (2002-2005)
  • BMW 745i (2002-2005)
  • BMW 750Li (2006-2008)
  • BMW 750i (2006-2008)
  • BMW 760Li (2003-2008)
  • BMW 760i (2004-2006)
  • BMW Alpina B7 (2007-2008)
  • BMW M6 (2006-2010, 2012-2015)
