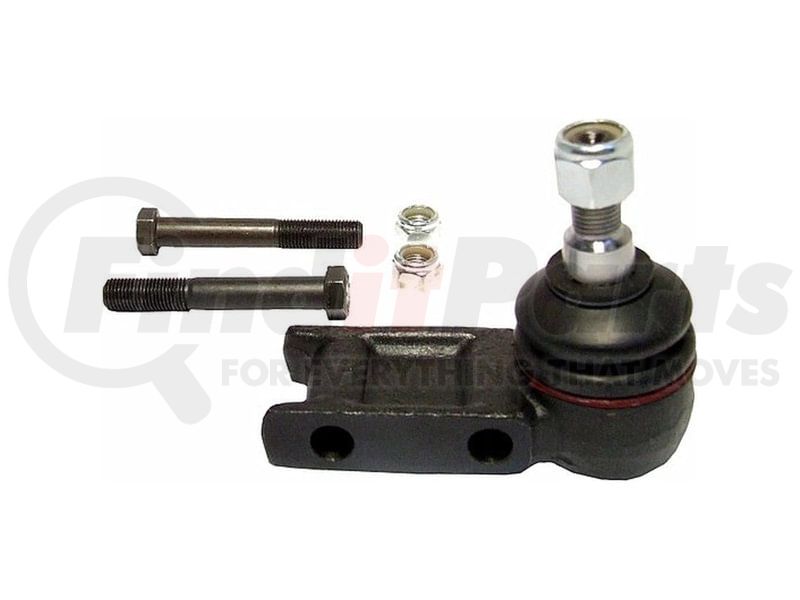

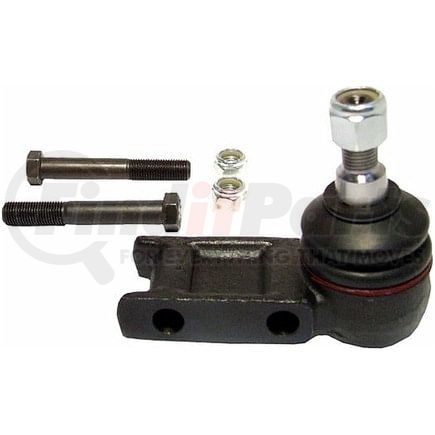

DELPHI TC125 Ball Joint

★★★★★ (0)

MSRP: $30.74

$28.99

Save $1.75

Limited availability at this price!

In Stock

Get as soon as Wednesday, Nov 25
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details
Orders placed over the weekend will be processed the next business day.

DELPHI TC125 Part Description

Manufacturer

DELPHI

Product Description

Ball Joint

Features & Benefits

  • Delphi ball joints manufactured with high quality forgings for increased strength and smooth operation
  • Ball joints utilize chloroprene rubber boots which improves durability, preventing premature failure
  • Delphi machines to micron tolerances to guarantee durability and smooth joint operation
  • Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

DELPHI TC125 Specifications

Product Attributes

Position(s)Front Lower, Front Upper. For the position specific to your vehicle, refer to the Applications.
Item GradeStandard Replacement
MaterialSteel
Maximum Outside Diameter1.870 IN
Maximum Outside Diameter47.50 MM
ColorGray
Stud Thread Diameter0.5 IN
Castle Nut IncludedNo
Grease Fitting IncludedNo
Suspension Grade TypeStandard Replacement
Bushings IncludedNo
Dust Boot IncludedYes
Ball Joint AssemblyYes
Width40 MM
Cotter Pin IncludedNo
Cotter Pin HoleNo
Mounting Hardware IncludedYes
Mounting Bolt Length3.248 IN
Mounting Bolt Length82.50 MM
Washers IncludedYes
Height3.677 IN
Height93.40 MM
Nuts IncludedYes
Mounting Hole Quantity2
AdjustableNo
GreaseableNo
Stud Thread Length1.043 IN
Stud Thread Length26.5 MM
Wrench Size16mm
Stud TypeThreaded
Mounting TypeBolt-In
Distance Between Mounting Holes41.50 MM
Dust Boot MaterialRubber
Mounting Bolt Shank Diameter0.438 IN
Mounting Bolt Shank Diameter11.00 MM
Mounting Bolt Head Diameter0.709 IN
Mounting Bolt Head Diameter18.00 MM
Mounting Bolts IncludedYes
Mounting Bolt Threads Per Inch20
Mounting Bolt Thread Length1.299 IN
Mounting Bolt Thread Length33.00 MM
Mounting Bolt Thread Diameter0.438 IN
Mount Plate IncludedNo
Tapered StudNo
Stud Tapered End 2 Diameter0.764 IN
Stud Tapered End 2 Diameter19.4 MM
Stud Tapered End 1 Diameter0.675 IN
Stud Tapered End 1 Diameter17.15 MM
Stud Threads Per Inch20
Stud Thread Diameter12.7 MM
Mounting Bolt Thread Diameter11.13 MM

Additional Information

Harmonized Tariff Code (HTS)8708806590
Warranty SpecialLimited
Warranty Special UOMLT
Harmonized Tariff Code (Schedule B)8708807000
Country of Origin (Primary)TR
UPC00689604251454
VMRS Code016001015
UNSPSC25174203

DELPHI TC125 Cross References

BrandPart Number
Beck/Arnley101-2665
CORTECO49395691
DORMANB9578, B9578PR, 536-956
Import DirectBJ07066
MAS IndustriesB9578
MOOG Chassis ProductsK9578
MevotechMK9578
N/A8933970, 8985348, GK9578, KBJ4139
Raybestos Chassis500-1002
Saab89 05 416, 89 85 384, 89 85 388, 89 93 321, 89 93 388
TRWJBJ252

DELPHI TC125 Fits Vehicles

  • Saab 900 (1979-1993)
  • Saab 99 (1969-1980)
