DELPHI TC1241 - Suspension Ball Joint - Front, RH, Lower, Non-Adjustable, without Bushing, Non-Greaseable
$3799
MSRP: $46.11
Save: $8.12
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
California Proposition 65 Warning
California Proposition 65 Warning
WARNING: This product can expose you to chemicals including Carbon black, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. (Read more)
Product Description

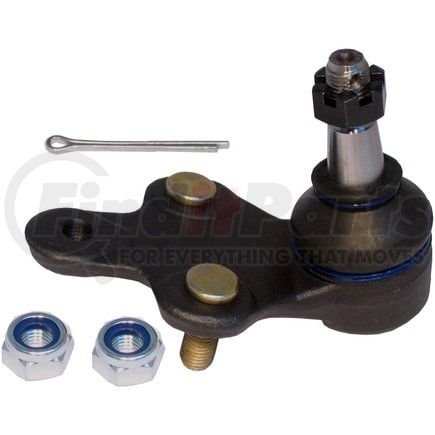

Ball Joint
Product Attributes
| Position(s) | Front Right Lower |
| Item Grade | Standard Replacement |
| Material | Steel |
| Maximum Outside Diameter | 1.772 IN |
| Maximum Outside Diameter | 45.0 MM |
| Color | Gray |
| Stud Thread Diameter | 0.472 IN |
| Stud Thread Diameter | 12.0 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 69.0 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| 3068 | 1.043 IN |
| Mounting Bolt Length | 26.5 MM |
| Washers Included | Yes |
| Height | 3.327 IN |
| Height | 84.5 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greasable | No |
| 4966 | 0.594 IN |
| Stud Thread Length | 15.1 MM |
| 839 | 17.0mm |
| Stud Type | Threaded |
| Mounting Type | Bolt On |
| Distance Between Mounting Holes | 36.0 MM |
| Dust Boot Material | Choloroprene Rubber (CR) |
| 9202 | 0.394 IN |
| Mounting Bolt Shank Diameter | 10.0 MM |
| 9203 | 0.709 IN |
| Mounting Bolt Head Diameter | 18.0 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| 9207 | 0.787 IN |
| Mounting Bolt Thread Length | 20.0 MM |
| Mounting Bolt Thread Diameter | 10.0 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| 9212 | 0.63 IN |
| Stud Tapered End 2 Diameter | 16.0 MM |
| 9213 | 0.532 IN |
| Stud Tapered End 1 Diameter | 13.52 MM |
| Stud Thread Pitch | 1.25 MM |
| Length | 119.0 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604251416 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Toyota Tercel (1991-1998)
- Toyota Paseo (1992-1999)
