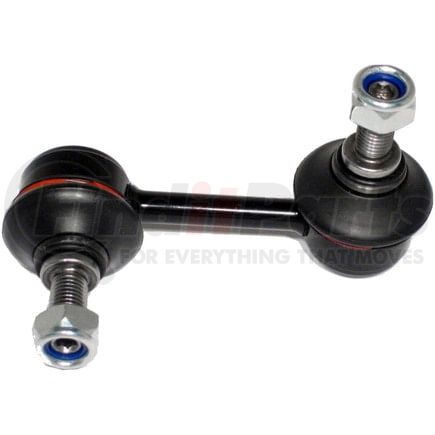

(888) 312-8812 Login SignupDELPHI TC1196 Suspension Stabilizer Bar Link
Tap to view 2 more
$2649
Limited availability at this price!
5 Day Lead Time
Get it by Friday, Feb 13
DELPHI TC1196 Part Description
Manufacturer
Product Description
Suspension Stabilizer Bar Link
Features & Benefits
- Sway bar links manufactured with ultrasonic molding to help prevent future weld breakage
- Delphi sway bar links are fatigue tested to avoid failure
- Delphi machines to micron tolerances to guarantee durability and smooth joint operation
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1196 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left |
| Material | Steel |
| Bushing Color | Black |
| Length | 80.00 MM |
| Length | 3.150 IN |
| End 1 Type | Ball Joint |
| End 2 Type | Ball Joint |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Bolt Thread Size | M10x1.25 |
| Width | 2.362 IN |
| Width | 60 MM |
| Washers Included | No |
| Height | 60.00 MM |
| Height | 2.362 IN |
| Grade Type | Standard Replacement |
| Bolts Included | No |
| Housing Material | Steel |
| Greaseable | No |
| Weight | 0.51 lb |
| Bushing Material | Rubber |
| Bolt Length | 80.00 MM |
| Bolt Length | 3.150 IN |
| Bolt Thread Diameter | 0.390 IN |
| Bolt Thread Diameter | 10.00 MM |
| Locking Nuts Included | Yes |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604251188 |
| VMRS Code | 016004006 |
| UNSPSC | 25172001 |
DELPHI TC1196 Cross References
DELPHI TC1196 Fits Vehicles
- Chevrolet Epica (2004-2005)
- Daewoo Leganza (1999-2002)
