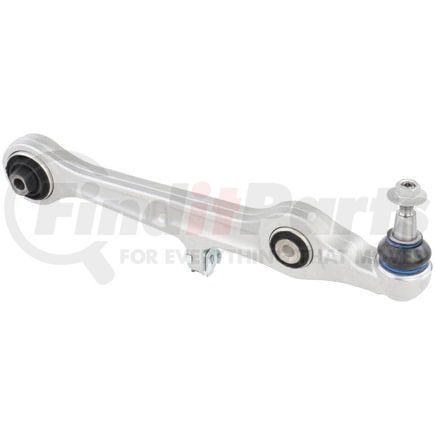

DELPHI TC1179 Control Arm and Ball Joint Assembly

★★★★★ (0)
Delphi TC1179 Suspension Control Arm and Ball Joint Assembly Control Arm and Ball Joint Assembly
DELPHI
Tap to view 7 more

$51.49

Limited availability at this price!

In Stock

Get as soon as Tuesday, Dec 1
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details
Orders placed over the weekend will be processed the next business day.

DELPHI TC1179 Part Description

Manufacturer

DELPHI

Product Description

Control Arm and Ball Joint Assembly

Features & Benefits

  • Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
  • Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specfications
  • Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
  • Control arms utilize robot welding for consistent performance and quality
  • Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

DELPHI TC1179 Specifications

Product Attributes

Item GradeStandard Replacement
Position(s)Front Lower Forward
Pre-GreasedYes
Grease Fitting IncludedNo
Bushings IncludedYes
Ball Joint Stud TypeGrooved
Control Arm ConstructionCasting/Forged
Control Arm MaterialAluminum
Mounting Hardware IncludedNo
Mounting Hole Quantity1
AdjustableNo
GreaseableNo
Control Arm Maximum Width2.362 IN
Control Arm Maximum Width60.00 MM
Control Arm ColorGray
Ball Joint Thread Diameter12.0 MM
Ball Joint Stud Length54.60 MM
Control Arm Maximum Length14.370 IN
Control Arm Maximum Length365.00 MM
Mounting Hole Diameter12.20 MM
Bushing MaterialRubber
Bushing ColorBlack
FinishUncoated
Dust Boot IncludedYes
Ball Joint IncludedYes
Grade TypePremium
Boot MaterialChloroprene Rubber (CR)
Boot ColorBlack
Steering TypePower
Bearing MaterialPlastic
Dust Boot MaterialChloroprene Rubber (CR)
Ball Joint Stud Length2.150 IN
Mounting Hole Diameter0.480 IN

Additional Information

Harmonized Tariff Code (Schedule B)8708807000
Country of Origin (Primary)TR
Harmonized Tariff Code (HTS)8708806590
Warranty SpecialLimited
Warranty Special UOMLT
UPC00689604251089
VMRS Code016001001
UNSPSC25172013

DELPHI TC1179 Cross References

BrandPart Number
Audi8E0 407 151 L, 8E0 407 151 N, 8E0 407 151E, 8E0 407 151K, 8E0 407 151M, 8E0 407 151R
Beck/Arnley101-5819, 102-5819
CORTECO49398493
DORMANCB12025, CB12025PR
DeezaVW-H130
Dorman520-976
MAS IndustriesCB12025
MEYLE1160500203, 1160500000/HD
MOOG Chassis ProductsK80524, RK80524
MevotechCMK80524, MK80524, MK80525, MK80526
N/ACK80524, GK80524, 623.3302
Seat8E0 407 151R
TRWJTC936
VAICOV10-7260

DELPHI TC1179 Fits Vehicles

  • Audi A4 (2002-2009)
  • Audi A4 Quattro (2002-2009)
  • Audi RS4 (2007-2008)
  • Audi S4 (2002, 2004-2009)
