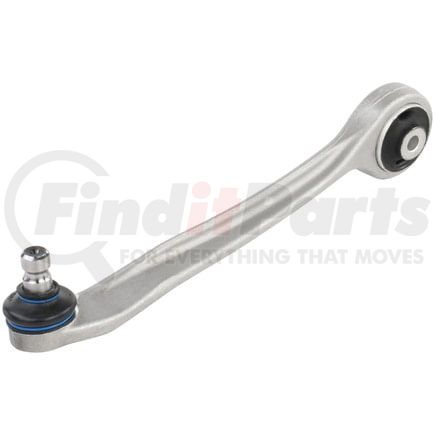

(888) 312-8812 Login SignupDELPHI TC1177 Control Arm and Ball Joint Assembly
Tap to view 23 more
$3399
Limited availability at this price!
In Stock
Get it by Wednesday, Jun 10
DELPHI TC1177 Part Description
Manufacturer
Product Description
Control Arm and Ball Joint Assembly
Features & Benefits
- Delphi control arms undergo 100% crack detection and ultrasonic flaw detection to ensure materials match OE specifications
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Control arms utilize robot welding for consistent performance and quality
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TC1177 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Upper Forward |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Stud Type | Grooved |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | No |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 2.559 IN |
| Control Arm Maximum Width | 65.00 MM |
| Control Arm Color | Gray |
| Ball Joint Thread Diameter | 16.0 MM |
| Ball Joint Stud Length | 43.00 MM |
| Control Arm Maximum Length | 12.795 IN |
| Control Arm Maximum Length | 325.00 MM |
| Mounting Hole Diameter | 10.20 MM |
| Bushing Material | Rubber |
| Bushing Color | Black |
| Finish | Uncoated |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Stud Length | 1.693 IN |
| Mounting Hole Diameter | 0.402 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604251065 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
DELPHI TC1177 Cross References
| Brand | Part Number |
|---|---|
| Audi | 895 407 505 A, 895 407 505 C, 895 407 505 P, 8D0 407 505 B, 8D0 407 505 H, 8D0 407 505A, 8D0 407 505F, 8D0 407 505K, 8D0 407 507E, 8E0 407 505A, 8E0 407 505C, 8E0 407 505P |
| Beck/Arnley | 101-4964, 102-4964 |
| CORTECO | 49398447, 49398445 |
| DORMAN | CB30831, CB30831PR, CB121000, CB121000PR |
| Deeza | VW-H120 |
| Dorman | 520-763, 531-775 |
| MAS Industries | CB12027, CB121000, CB121000PR, CB30831, CB30831PR, CB90497 |
| MEYLE | 1160500209, 1160508297/HD |
| MOOG | RK100092 |
| MOOG Chassis Products | CK90497, K90497, RK100092, RK90497 |
| Mcquay-Norris | FA4041 |
| Mevotech | CMK90497, MK90497, MK90699 |
| N/A | 4Z7 407 505 A, GK90497, 623.33014, 8D0 407 505 E, 8D0407505L |
| Raybestos Chassis | 502-1013 |
| Seat | 8E0 407 505P |
| Skoda | 8D0 407 505 B, 8D0 407 505 H, 8D0 407 505A, 8D0 407 505F, 8D0 407 505K, 8D0 407 507E, 8E0 407 505A |
| TRW | JTC421 |
| VAICO | V10-3952, V10-7013 |
| Volkswagen | 8D0 407 505 B, 8D0 407 505 H, 8D0 407 505A, 8D0 407 505F, 8D0 407 505K, 8D0 407 507E, 8E0 407 505A, 8E0 407 505C, 8E0 407 505P |
DELPHI TC1177 Fits Vehicles
- Audi RS4 (2007-2008)
- Audi RS6 (2003-2004)
- Audi S6 (2002-2003)
- Audi Allroad Quattro (2001-2005)
- Audi S4 (2000-2002, 2004-2009)
- Volkswagen Passat (1998-2005)
- Audi A6 (1998-2004)
- Audi A6 Quattro (1998-2004)
- Audi A4 (1996-2009)
- Audi A4 Quattro (1996-2009)
