Position(s)	Front Lower
Item Grade	Standard Replacement
Material	Steel
Maximum Outside Diameter	1.642 IN
Maximum Outside Diameter	41.70 MM
Color	Black
Stud Thread Diameter	0.472 IN
Stud Thread Diameter	12 MM
Castle Nut Included	No
Grease Fitting Included	No
Suspension Grade Type	Standard
Bushings Included	No
Dust Boot Included	Yes
Ball Joint Assembly	Yes
Width	85.5 MM
Cotter Pin Included	No
Cotter Pin Hole	No
Mounting Hardware Included	Yes
Mounting Bolt Length	2.028 IN
Mounting Bolt Length	51.50 MM
Washers Included	No
Height	3.898 IN
Height	99.00 MM
Nuts Included	Yes
Mounting Hole Quantity	3
Adjustable	No
Greaseable	No
Stud Thread Length	0.748 IN
Stud Thread Length	19 MM
Wrench Size	17mm
Stud Type	Threaded
Mounting Type	Bolt-In
Distance Between Mounting Holes	48.00 MM
Dust Boot Material	Rubber
Mounting Bolt Shank Diameter	0.394 IN
Mounting Bolt Shank Diameter	10.00 MM
Mounting Bolt Head Diameter	0.709 IN
Mounting Bolt Head Diameter	18.00 MM
Mounting Bolts Included	Yes
Mounting Bolt Thread Pitch	1.5 MM
Mounting Bolt Thread Length	1.102 IN
Mounting Bolt Thread Length	28.00 MM
Mounting Bolt Thread Diameter	10.00 MM
Mount Plate Included	No
Tapered Stud	Yes
Stud Tapered End 2 Diameter	0.795 IN
Stud Tapered End 2 Diameter	20.2 MM
Stud Tapered End 1 Diameter	0.606 IN
Stud Tapered End 1 Diameter	15.4 MM
Stud Thread Pitch	1.5 MM
Mounting Bolt Thread Diameter	0.390 IN

Harmonized Tariff Code (Schedule B)	8708807000
Harmonized Tariff Code (HTS)	8708806590
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
Country of Origin (Primary)	TR
UPC	00689604250471
VMRS Code	016001015
UNSPSC	25174203

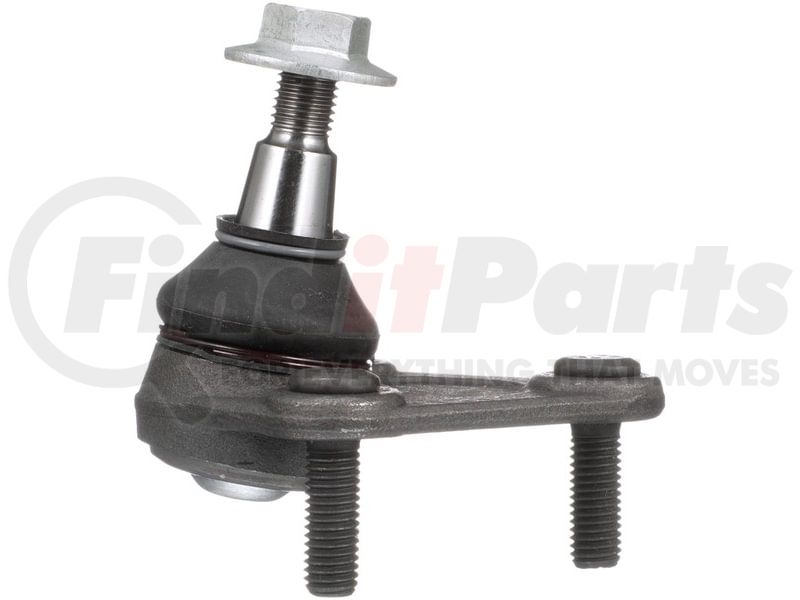

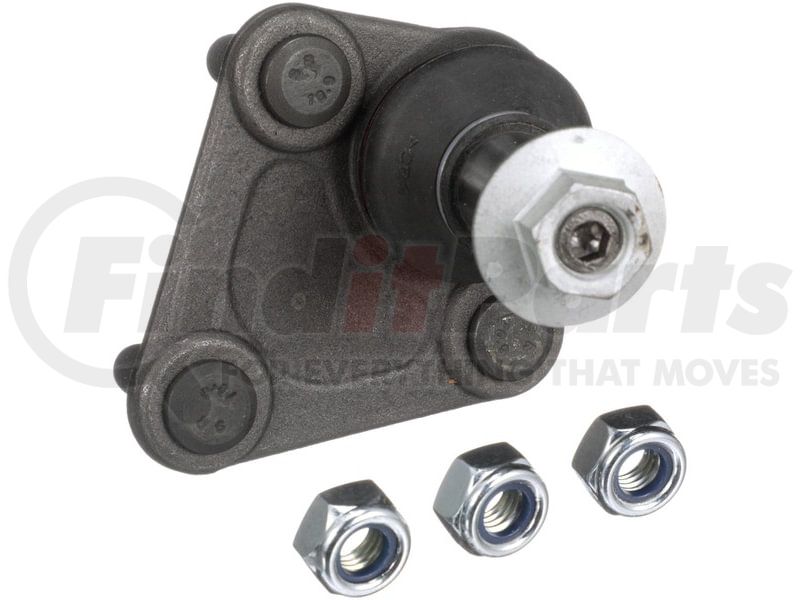

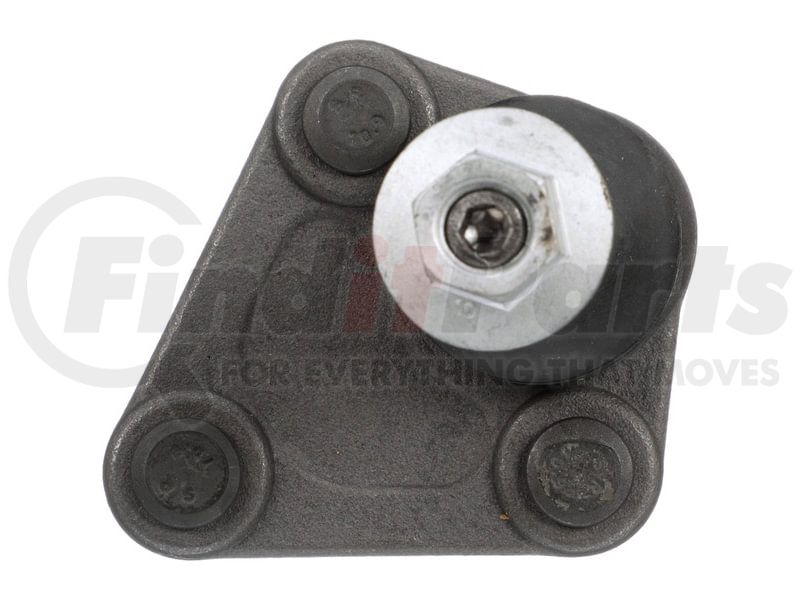

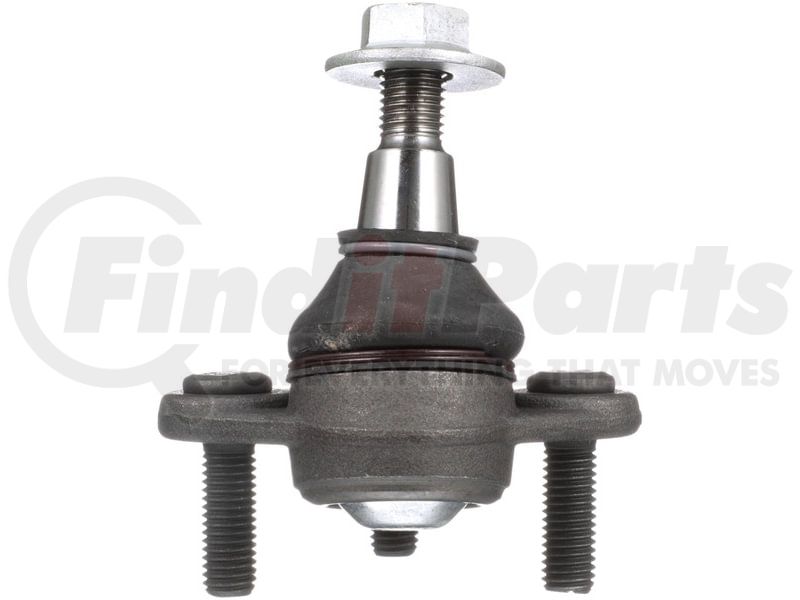

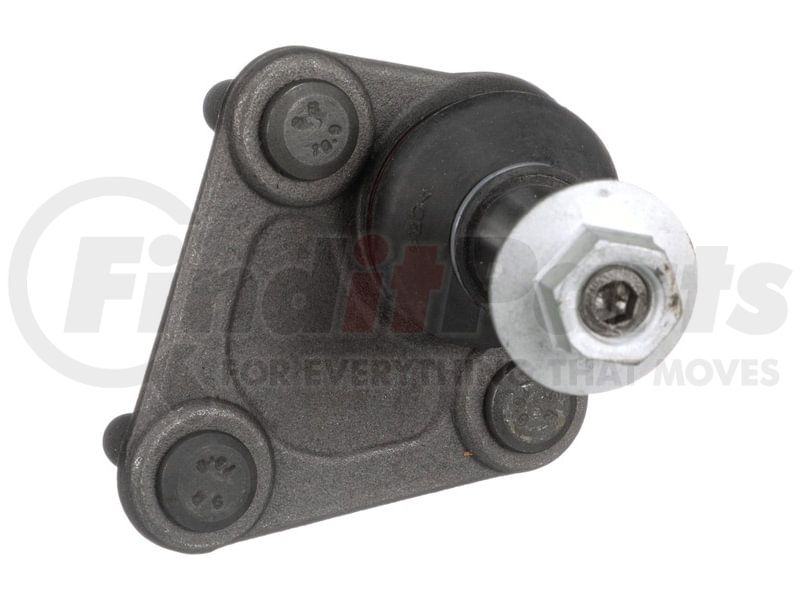

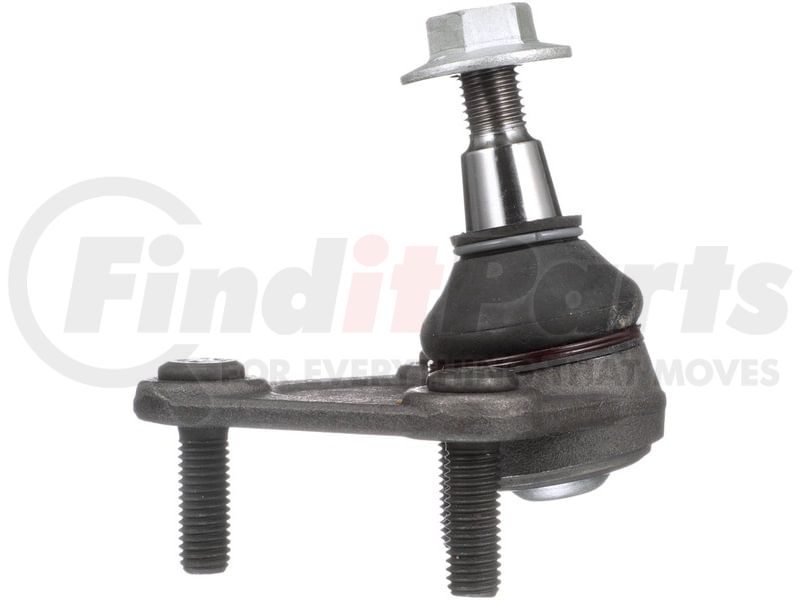

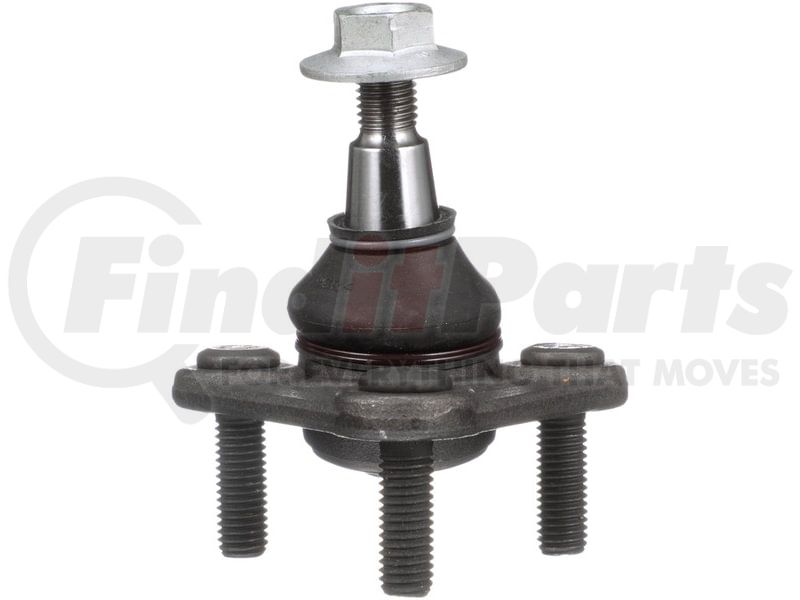

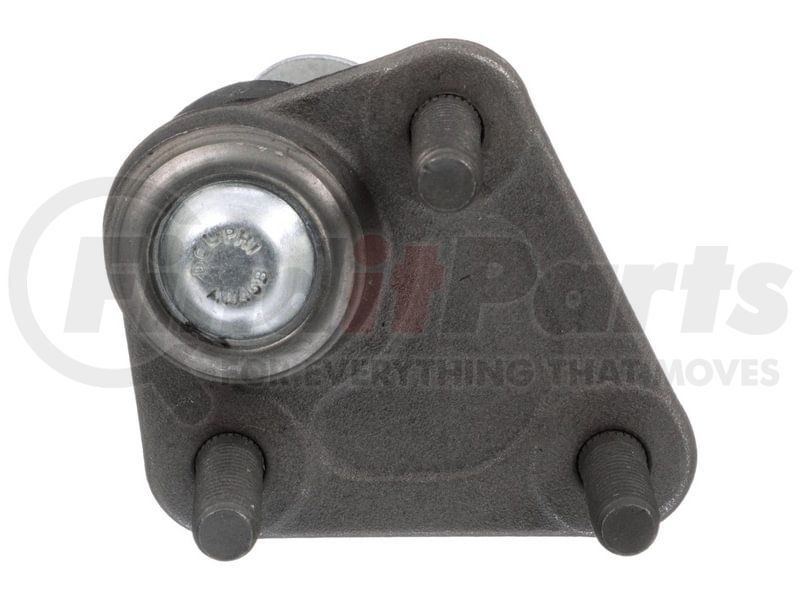

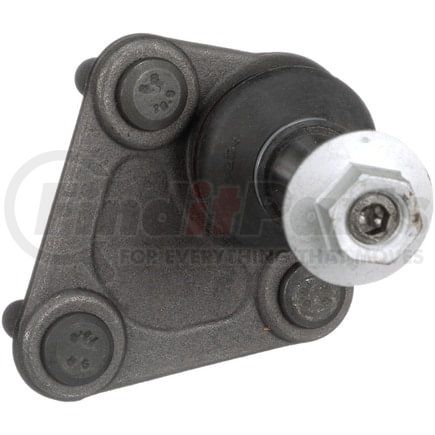

Delphi TC1042 - Ball Joint

Ball Joint
