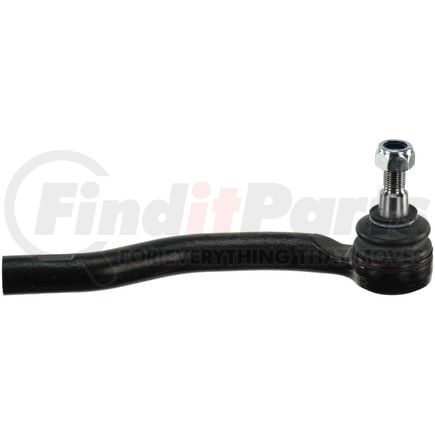

(888) 312-8812 Login SignupDELPHI TA3075 Tie Rod End
Tap to view 2 more
MSRP: $30.63
$2449
Save $6.14
Limited availability at this price!
In Stock
Get it by Friday, Jan 30
DELPHI TA3075 Part Description
DELPHI TA3075 Specifications
Product Attributes
| Position(s) | Right Outer |
| Item Grade | Standard Replacement |
| Color | Black |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 52.8 MM |
| Type | Bent |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.551 IN |
| End 2 Thread Diameter | 14.00 MM |
| Height | 76.00 MM |
| Housing Material | Steel |
| Tube Diameter | 0.827 IN |
| Tube Diameter | 21.00 MM |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.84 lb |
| Cone Outside Diameter | 17.50 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 8.110 IN |
| Length - Stud Center to End | 206.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.472 IN |
| End 1 Thread Diameter | 12.00 MM |
| Shank Length | 17.50 MM |
| Stud Length | 17.50 MM |
| Grade Type | Standard |
| Grade | Premium |
| Shank Length | 0.689 IN |
| Stud Length | 0.689 IN |
| Cone Outside Diameter | 0.689 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604250006 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
DELPHI TA3075 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-7292 |
| DORMAN | TO65112, TO65112XL, 534-012 |
| Import Direct | ER06053 |
| MAS Industries | TO65112 |
| MEVOTECH | MS76612 |
| MOOG | ES800600 |
| MOOG Chassis Products | ES800600 |
| Mazda | EG21-32-280, EG21-32-280A, EG21-32-280B, TD11-32-280A, TD113280, TD113280A |
| Mevotech | MES80627, MS30612 |
| N/A | TD11-32-280, GS76612, MS76612, TO65112XL |
| TRW | JTE340 |
DELPHI TA3075 Fits Vehicles
- Mazda CX-9 (2007-2015)
- Mazda CX-7 (2007-2012)
