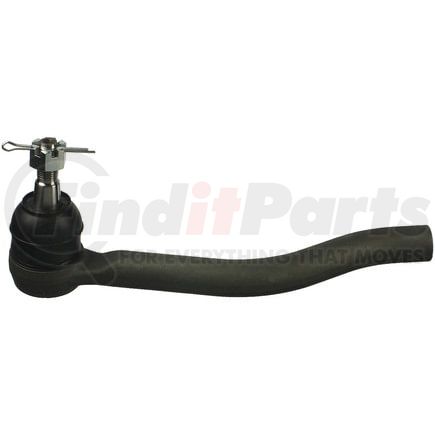

Name: Delphi TA3007 Tie Rod End
SKU: ta3007
Price: 23.99 USD
Availability: InStock

DELPHI TA3007 Part Description

Tie Rod End

DELPHI TA3007 Specifications

Position(s)	Front Left Outer, Front Right Outer, Left Outer. For the position specific to your vehicle, refer to the Applications.
Item Grade	Standard Replacement
Color	Black
End 2 Gender	Female
Pre-Greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Width	58.5 MM
Type	Bent
Mounting Hardware Included	Yes
End 2 Thread Diameter	0.551 IN
End 2 Thread Diameter	14.00 MM
Height	93.50 MM
Housing Material	Steel
Tube Diameter	0.827 IN
Tube Diameter	21.00 MM
Adjustable	No
Greaseable	No
Weight	2.14 lb
Cone Outside Diameter	18.65 MM
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Stud Type	Threaded
End 2 Thread Pitch	1.5 MM
Length - Stud Center to End	8.504 IN
Length - Stud Center to End	216.00 MM
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 1 Thread Diameter	0.472 IN
End 1 Thread Diameter	12.00 MM
Shank Length	18.65 MM
Stud Length	18.65 MM
Grade Type	Standard
Grade	Premium
Shank Length	0.734 IN
Stud Length	0.734 IN
Cone Outside Diameter	0.734 IN

Harmonized Tariff Code (Schedule B)	8708998175
Harmonized Tariff Code (HTS)	8708998180
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
Country of Origin (Primary)	TR
UPC	00689604249741
VMRS Code	015004045
UNSPSC	25174205
