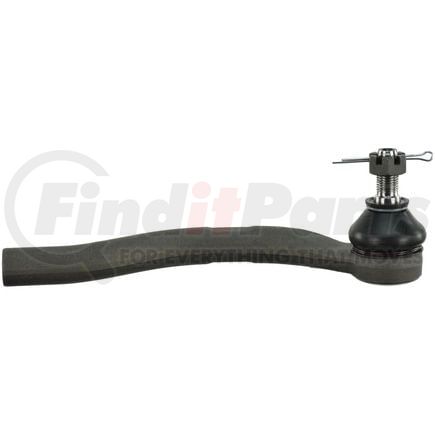

(888) 312-8812 Login SignupDELPHI TA3004 Tie Rod End
Tap to view 2 more
MSRP: $34.43
$2349
Save $10.94
Limited availability at this price!
In Stock
Get it by Thursday, Dec 18
DELPHI TA3004 Part Description
DELPHI TA3004 Specifications
Product Attributes
| Position(s) | Right Outer |
| Item Grade | Standard Replacement |
| Color | Black |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 61 MM |
| Type | Bent |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.551 IN |
| End 2 Thread Diameter | 14.00 MM |
| Height | 71.70 MM |
| Housing Material | Steel |
| Tube Diameter | 0.787 IN |
| Tube Diameter | 20.00 MM |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.56 lb |
| Cone Outside Diameter | 15.10 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 7.756 IN |
| Length - Stud Center to End | 197.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.472 IN |
| End 1 Thread Diameter | 12.00 MM |
| Shank Length | 15.10 MM |
| Stud Length | 15.10 MM |
| Grade Type | Standard |
| Grade | Premium |
| Shank Length | 0.594 IN |
| Stud Length | 0.594 IN |
| Cone Outside Diameter | 0.594 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604249710 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
DELPHI TA3004 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-5946 |
| MOOG Chassis Products | ES800913 |
| Mevotech | MS60652 |
| Honda | 53540-TR0-A02 |
| MAS Industries | TO59252 |
| TRW | JTE1728 |
| N/A | 53540-TR0-A01 |
DELPHI TA3004 Fits Vehicles
- Acura ILX (2013-2021)
- Honda Civic (2012-2015)
