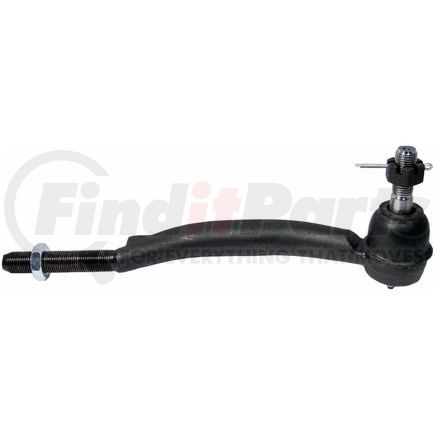

DELPHI TA2564 Part Description
DELPHI TA2564 Specifications
Product Attributes
| Position(s) | Right Outer |
| Item Grade | Standard Replacement |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Dust Boot Included | Yes |
| Width | 65 MM |
| Type | Bent |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.630 IN |
| End 2 Thread Diameter | 16.00 MM |
| Height | 106.00 MM |
| Housing Material | Steel |
| Tube Diameter | 1.063 IN |
| Tube Diameter | 27.00 MM |
| Adjustable | No |
| Weight | 2.86 lb |
| Cone Outside Diameter | 18.30 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.551 IN |
| End 1 Thread Diameter | 14.00 MM |
| Shank Length | 18.30 MM |
| Stud Length | 18.30 MM |
| Grade Type | Standard |
| Grade | Premium |
| Shank Length | 0.720 IN |
| Stud Length | 0.720 IN |
| Cone Outside Diameter | 0.720 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604248478 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
DELPHI TA2564 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-6756 |
| MOOG Chassis Products | ES3676 |
| Mcquay-Norris | ES4080 |
| Mevotech | MES3676 |
| Deeza | CV-S604 |
| General Motors | 26 10 0287 |
| Isuzu | 8-26100-287-0 |
| MAS Industries | TO90044, TO91092 |
| TRW | JTE1288 |
| N/A | 89048897, GES3676, TXES3676, TO91092XL |
DELPHI TA2564 Fits Vehicles
- Chevrolet Trailblazer EXT (2002-2006)
- GMC Envoy XUV (2004-2005)
- GMC Envoy XL (2002-2006)
- Saab 9-7x (2005-2009)
- Chevrolet SSR (2003-2006)
- Buick Rainier (2004-2007)
- Oldsmobile Bravada (2002-2004)
- GMC Envoy (2002-2009)
- Chevrolet Trailblazer (2002-2009)
- Isuzu Ascender (2003-2008)
