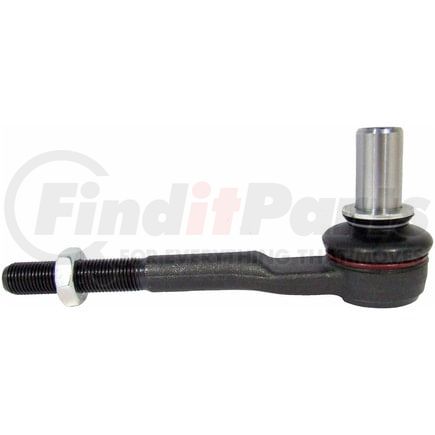

Delphi TA2383 - Tie Rod End
$3599
MSRP: $41.09
Save: $5.10
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Outer |
| Item Grade | Standard Replacement |
| Color | Black |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 40 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.551 IN |
| End 2 Thread Diameter | 14.00 MM |
| Height | 69.00 MM |
| Housing Material | Steel |
| Tube Diameter | 0.610 IN |
| Tube Diameter | 15.50 MM |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.32 lb |
| Cone Outside Diameter | 0.687 IN |
| Cone Outside Diameter | 17.45 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| End 1 Thread Pitch | 1.25 MM |
| Length - Stud Center to End | 6.102 IN |
| Length - Stud Center to End | 155.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.315 IN |
| End 1 Thread Diameter | 8.00 MM |
| Shank Length | 17.45 MM |
| Stud Length | 17.45 MM |
| Grade Type | Standard |
| Boot Color | Black |
| Grade | Premium |
| Shank Length | 0.687 IN |
| Stud Length | 0.687 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604247914 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
Part Interchanges
- Beck/Arnley 101-4393
- Beck/Arnley 101-7101
- MOOG Chassis Products ES800269
- Mcquay-Norris ES4596
- Mevotech MS70609
- Deeza AD-S203
- Audi 4B0 419 811G
- Audi 4F0 419 811 C
- Audi 4F0 419 811 D
- Audi 4F0 498 811 A
- Audi 8E0 419 811
- Skoda 4F0 419 811 C
- Skoda 4F0 419 811 D
- Seat 4F0 419 811 D
- MAS Industries TO12165
- TRW JTE1023
- Import Direct ER19082
- GS70609
- TO12165PR
Fits Vehicles
- Audi A4 Quattro (2007-2008)
- Audi RS4 (2007-2008)
- Audi RS6 (2003-2004)
- Audi A6 (2003-2004, 2006-2011)
- Audi S6 (2002-2003, 2007-2011)
- Audi Allroad Quattro (2002-2005)
- Audi A6 Quattro (2002-2011)
- Audi A4 (2002-2009)
- Audi S4 (2000-2002, 2004-2009)
