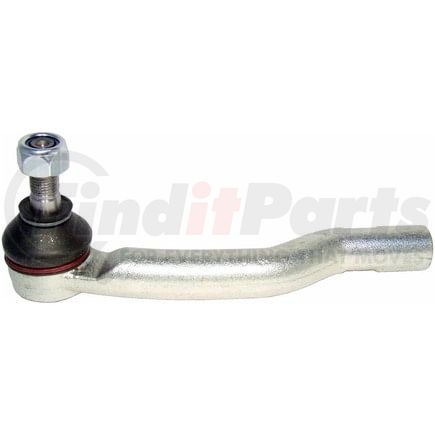

Delphi TA2342 - Tie Rod End
$3499
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Left Outer |
| Item Grade | Standard Replacement |
| Color | Black |
| End 1 Gender | Female |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 42 MM |
| Type | Bent |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.472 IN |
| End 2 Thread Diameter | 12.00 MM |
| Height | 72.00 MM |
| Housing Material | Steel |
| Adjustable | Yes |
| Greaseable | No |
| Weight | 1.29 lb |
| Cone Outside Diameter | 14.00 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.25 MM |
| Length - Stud Center to End | 6.890 IN |
| Length - Stud Center to End | 175.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.551 IN |
| End 1 Thread Diameter | 14.00 MM |
| Shank Length | 14.00 MM |
| Stud Length | 14.00 MM |
| Grade Type | Standard |
| Shank Length | 0.551 IN |
| Stud Length | 0.551 IN |
| Cone Outside Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| UPC | 00689604247594 |
| VMRS Code | 015004020 |
| UNSPSC | 25174205 |
Part Interchanges
- Beck/Arnley 101-4826
- Beck/Arnley 101-4827
- MOOG Chassis Products ES3701
- MOOG Chassis Products ES800427
- Mcquay-Norris ES4123
- Mevotech MS80606
- Deeza SZ-T604
- General Motors 48820-65D00
- General Motors 48820-67D00
- Suzuki 48820-65D00
- Suzuki 48820-67D00
- MAS Industries TO73001
- MAS Industries TO73011
- MOOG Chassis Products 101-4826
- TRW JTE7618
- JTE7687
- TO73001PR
Fits Vehicles
- Chevrolet Tracker (1999-2004)
- Suzuki XL-7 (2002-2006)
- Suzuki Vitara (1999-2004)
- Suzuki Grand Vitara (1999-2005)
