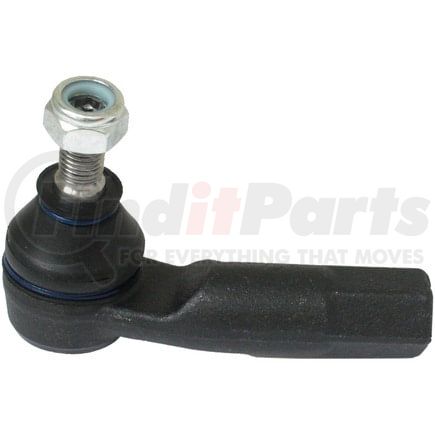

(888) 312-8812 Login SignupDELPHI TA1914 Tie Rod End
MSRP: $18.11
$1599
Save $2.12
Limited availability at this price!
In Stock
Get it by Thursday, Feb 5
DELPHI TA1914 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA1914 Specifications
Product Attributes
| Position(s) | Left Outer |
| Item Grade | Standard Replacement |
| Color | Gray |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 37 MM |
| Type | Bent |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.630 IN |
| End 2 Thread Diameter | 16.00 MM |
| Height | 76.40 MM |
| Housing Material | Steel |
| Tube Diameter | 0.984 IN |
| Tube Diameter | 25.00 MM |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.11 lb |
| Cone Outside Diameter | 16.40 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 3.740 IN |
| Length - Stud Center to End | 95.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.472 IN |
| End 1 Thread Diameter | 12.00 MM |
| Shank Length | 16.40 MM |
| Stud Length | 16.40 MM |
| Grade Type | Standard Replacement |
| Grade | Premium |
| Shank Length | 0.646 IN |
| Stud Length | 0.646 IN |
| Cone Outside Diameter | 0.646 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604246443 |
| VMRS Code | 015004020 |
| UNSPSC | 25174205 |
DELPHI TA1914 Cross References
| Brand | Part Number |
|---|---|
| Audi | 1K0 423 811 A, 1K0 423 811 E, 1K0 423 811 G, 1K0 423 811 J, 1K0 423 811 K, 1K0 423 811B, 1K0 423 811C, 1K0 423 811F, 1K0 426 811E |
| Beck/Arnley | 101-5850 |
| CORTECO | 49398852, 49398596 |
| DORMAN | TO43001, TO43001XL, 534-986 |
| Deeza | AD-T203 |
| Import Direct | ER02050 |
| MAS Industries | TO43001 |
| MEYLE | 1160200025, 1160200025HD, 116 030 0018 |
| MOOG | ES2388RL, ES80666 |
| MOOG Chassis Products | ES800505, ES80666 |
| Mcquay-Norris | ES4441 |
| Mevotech | MS10624 |
| N/A | GS10624, 612.33035 |
| Seat | 1K0 423 811 A, 1K0 423 811 E, 1K0 423 811 J, 1K0 423 811 K, 1K0 423 811B, 1K0 423 811F, 1K0 426 811E |
| Skoda | 1K0 423 811 G, 1K0 423 811C |
| TRW | JTE1052, JTE1053, JTE1054 |
| VAICO | V101777, V10-0637 |
| Volkswagen | 1K0 423 811 A, 1K0 423 811 E, 1K0 423 811 G, 1K0 423 811 J, 1K0 423 811 K, 1K0 423 811B, 1K0 423 811C, 1K0 423 811F, 1K0 426 811E |
DELPHI TA1914 Fits Vehicles
- Audi RS3 (2023)
- Volkswagen Taos (2022-2023)
- Volkswagen Arteon (2019-2023)
- Volkswagen Tiguan Limited (2018)
- Volkswagen Golf Alltrack (2017-2019)
- Volkswagen Golf R (2012-2013, 2015-2019, 2022-2023)
- Audi A3 Sportback e-tron (2016-2018)
- Volkswagen Golf SportWagen (2015-2019)
- Audi Q3 Quattro (2015-2018)
- Audi Q3 (2015-2023)
- Audi S3 (2015-2020, 2022-2023)
- Volkswagen e-Golf (2015-2020)
- Audi A3 Quattro (2006-2013, 2015-2020, 2022-2023)
- Volkswagen Beetle (2012-2019)
- Volkswagen Passat CC (2009-2010)
- Volkswagen Golf (2010-2021)
- Volkswagen CC (2009-2017)
- Volkswagen GTI (2006-2023)
- Volkswagen Tiguan (2009-2023)
- Volkswagen R32 (2008)
- Volkswagen Eos (2007-2016)
- Volkswagen Rabbit (2006-2009)
- Volkswagen Passat (2006-2010, 2012-2022)
- Audi A3 (2006-2020, 2022-2023)
- Volkswagen Jetta (2005-2023)
