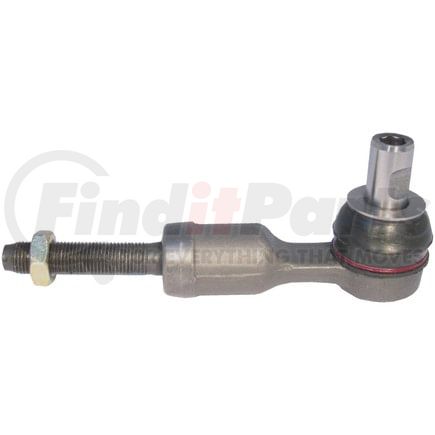

(888) 312-8812 Login SignupDELPHI TA1908 Tie Rod End
MSRP: $26.72
$2249
Save $4.23
Limited availability at this price!
In Stock
Get it by Monday, Jun 15
DELPHI TA1908 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA1908 Specifications
Product Attributes
| Position(s) | Front Outer, Outer. For the position specific to your vehicle, refer to the Applications. |
| Item Grade | Standard Replacement |
| Color | Gray |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 43 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.551 IN |
| End 2 Thread Diameter | 14.00 MM |
| Height | 75.20 MM |
| Housing Material | Steel |
| Tube Diameter | 1.240 IN |
| Tube Diameter | 31.50 MM |
| Adjustable | No |
| Greaseable | No |
| Weight | 1.7 lb |
| Cone Outside Diameter | 17.45 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 6.102 IN |
| Length - Stud Center to End | 155.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.315 IN |
| End 1 Thread Diameter | 8.00 MM |
| Shank Length | 17.45 MM |
| Stud Length | 17.45 MM |
| Grade Type | Standard Replacement |
| Grade | Premium |
| Shank Length | 0.687 IN |
| Stud Length | 0.687 IN |
| Cone Outside Diameter | 0.687 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| UPC | 00689604246412 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
DELPHI TA1908 Cross References
| Brand | Part Number |
|---|---|
| Audi | 4B0 419 811 C, 4B0 419 811 E, 4B0 419 811 F, 4B0 419 811B, 4D0 419 811 A, 4D0 419 811B, 4D0 419 811G, 8E0 419 811 B |
| Beck/Arnley | 101-4393 |
| CORTECO | 49398476 |
| DORMAN | TO12075, TO12075XL |
| MAS Industries | TO12075, TO12165, TO12165PR |
| MEYLE | 1160308227/HD, 1160200008/HD, 1160200046, 1160200047, 1160208228/HD |
| MOOG | ES3646 |
| MOOG Chassis Products | ES3646 |
| Mevotech | MES3646 |
| N/A | GES3646, TO12075XL, JTE1023, 612.33018 |
| Skoda | 8E0 419 811 B |
| TRW | JTE143 |
| VAICO | V10-7001 |
| Volkswagen | 4B0 419 811 C, 4B0 419 811B, 4D0 419 811, 4D0 419 811 A, 4D0 419 811B, 4D0 419 811J, 4F0 498 811, 8E0 419 811 B |
DELPHI TA1908 Fits Vehicles
- Audi S4 (2000-2001)
- Audi A4 (2000-2005)
- Audi Allroad Quattro (2001-2002)
- Volkswagen Passat (1998-2005)
- Audi A4 Quattro (2000-2005)
- Audi A6 Quattro (1999-2003)
- Audi A6 (1998-2003)
DELPHI TA1908 Customer Reviews
No reviews yet
Be the first to review this product!
DELPHI TA1908 Questions & Answers
No questions yet
Be the first to ask a question about this product!
