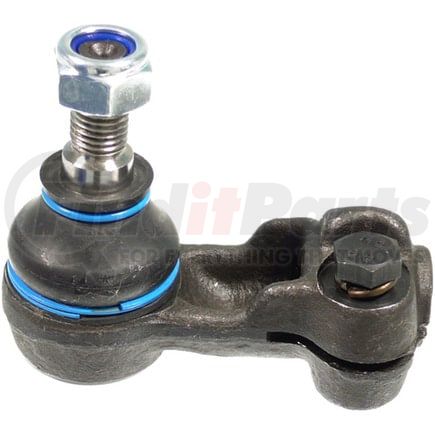

DELPHI TA1740 Tie Rod End

★★★★★ (0)
Delphi TA1740 Steering Tie Rod End Tie Rod End
DELPHI

$28.99

Limited availability at this price!

5 Day Lead Time

Get as soon as Friday, Sep 25
30-day Return Policy On eligible items Details
Free Ground shipping on orders over $499 details
This item will ship about 5 days after the date of purchase.

DELPHI TA1740 Part Description

Manufacturer

DELPHI

Product Description

Tie Rod End

Features & Benefits

  • Delphi includes the necessary accessories for a complete job
  • Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
  • Delphi tie rods are fatigue tested to avoid failure
  • Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

DELPHI TA1740 Specifications

Product Attributes

Position(s) Left Outer
Item Grade Standard Replacement
Color Gray
End 2 Gender Female
Pre-Greased Yes
Grease Fitting Included No
Dust Boot Included Yes
Width 43.5 MM
Type Straight
Mounting Hardware Included Yes
End 2 Thread Diameter 0.630 IN
End 2 Thread Diameter 16.00 MM
Height 73.50 MM
Housing Material Steel
Tube Diameter 0.984 IN
Tube Diameter 25.00 MM
Adjustable No
Greaseable No
Weight 1.07 lb
Cone Outside Diameter 16.20 MM
Bearing Material Plastic
End 1 Thread Direction Clockwise (Right)
End 2 Thread Direction Counterclockwise (Left)
Stud Type Threaded
End 2 Thread Pitch 1.5 MM
Length - Stud Center to End 2.835 IN
Length - Stud Center to End 72.00 MM
Dust Boot Material Rubber
Tie Rod Material Steel
End 1 Thread Diameter 0.472 IN
End 1 Thread Diameter 12.00 MM
Shank Length 16.20 MM
Stud Length 16.20 MM
Grade Type Standard Replacement
Grade Premium
Shank Length 0.638 IN
Stud Length 0.638 IN
Cone Outside Diameter 0.638 IN

Additional Information

Harmonized Tariff Code (Schedule B) 8708998175
Harmonized Tariff Code (HTS) 8708998180
Warranty Special Limited
Warranty Special UOM LT
Country of Origin (Primary) TR
UPC 00689604246016
VMRS Code 015004020
UNSPSC 25174205

DELPHI TA1740 Cross References

BrandPart Number
Beck/Arnley101-7004
CORTECO49399346
DORMANTO35011, TO35011PR
Import DirectER03048
MAS IndustriesTO35011
MEVOTECHMS10620
MEYLE53 16 020 0000
MOOG Chassis ProductsES800679
N/AKTR4629
RoverJQB100230, QJB 100230
TRWJTE1122
VAICOV489514

DELPHI TA1740 Fits Vehicles

  • Land Rover Freelander (2002-2005)
