(888) 312-8812 Login SignupDELPHI TA1666 Tie Rod End
$2099
Limited availability at this price!
In Stock
Get it by Thursday, Feb 5
DELPHI TA1666 Part Description
Manufacturer
Product Description

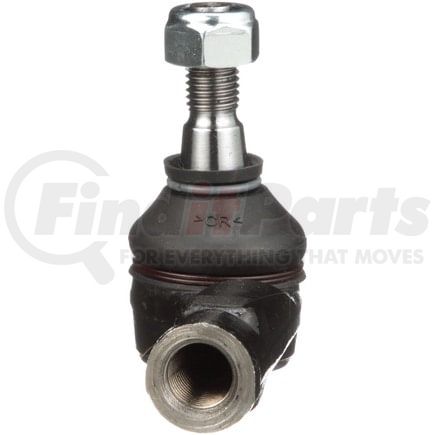

Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA1666 Specifications
Product Attributes
| Position(s) | Right Outer |
| Item Grade | Standard Replacement |
| Color | Black |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 43 MM |
| Type | Bent |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.551 IN |
| End 2 Thread Diameter | 14.00 MM |
| Height | 80.50 MM |
| Housing Material | Steel |
| Tube Diameter | 0.787 IN |
| Tube Diameter | 20.00 MM |
| Adjustable | No |
| Greaseable | No |
| Weight | 0.84 lb |
| Cone Outside Diameter | 17.20 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 2.953 IN |
| Length - Stud Center to End | 75.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.472 IN |
| End 1 Thread Diameter | 12.00 MM |
| Shank Length | 17.20 MM |
| Stud Length | 17.20 MM |
| Grade Type | Standard Replacement |
| Grade | Premium |
| Shank Length | 0.677 IN |
| Stud Length | 0.677 IN |
| Cone Outside Diameter | 0.677 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| UPC | 00689604245811 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
DELPHI TA1666 Cross References
| Brand | Part Number |
|---|---|
| Audi | 1J0 422 812, 1J0 422 812 A |
| Beck/Arnley | 101-4914 |
| CORTECO | 49399514 |
| DORMAN | TO43004, TO43004PR, 534-629 |
| Deeza | VW-T209 |
| Import Direct | ER02077 |
| MAS Industries | T3522, TO43004, 534-631 |
| MEYLE | 1160208285 |
| MOOG Chassis Products | ES3522 |
| Mcquay-Norris | ES3522 |
| Mevotech | MES3522 |
| N/A | 1JD422812, 101-4889, GES3524, MES3524, TO43142, TO43142XL, ES3524 |
| Skoda | 1J0 422 812, 1J0 422 812 A |
| TRW | JTE350 |
| VAICO | V10-7006 |
| Volkswagen | 1J0 422 812, 1J0 422 812 A |
DELPHI TA1666 Fits Vehicles
- Volkswagen Beetle (1998)
DELPHI TA1666 Customer Reviews
No reviews yet
Be the first to review this product!
DELPHI TA1666 Questions & Answers
No questions yet
Be the first to ask a question about this product!
