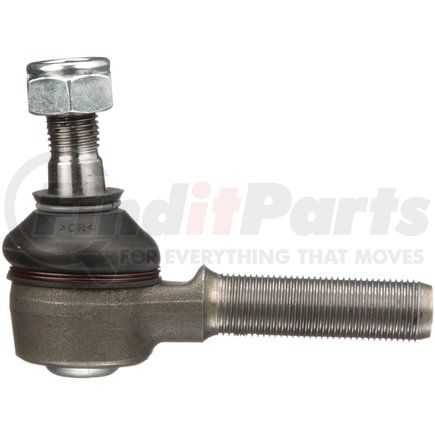

(888) 312-8812 Login SignupDELPHI TA1545 Tie Rod End
Tap to view 2 more
MSRP: $20.09
$1649
Save $3.60
Limited availability at this price!
In Stock
Get it by Thursday, Feb 5
DELPHI TA1545 Part Description
Manufacturer
Product Description
Tie Rod End
Features & Benefits
- Delphi includes the necessary accessories for a complete job
- Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
- Delphi tie rods are fatigue tested to avoid failure
- Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
DELPHI TA1545 Specifications
Product Attributes
| Position(s) | Outer |
| Item Grade | Standard Replacement |
| Color | Gray |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Dust Boot Included | Yes |
| Width | 40 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 17.00 MM |
| End 2 Thread Diameter | 0.669 IN |
| Height | 75.60 MM |
| Housing Material | Steel |
| Tube Diameter | 17.00 MM |
| Tube Diameter | 0.669 IN |
| Adjustable | No |
| Weight | 1 lb |
| Cone Outside Diameter | 16.00 MM |
| Cone Outside Diameter | 0.630 IN |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Counterclockwise (Left) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 90.00 MM |
| Length - Stud Center to End | 3.543 IN |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 14.00 MM |
| End 1 Thread Diameter | 0.551 IN |
| Shank Length | 16.00 MM |
| Stud Length | 16.00 MM |
| Grade Type | Standard Replacement |
| Boot Color | Black |
| Grade | Premium |
| Shank Length | 0.630 IN |
| Stud Length | 0.630 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Country of Origin (Primary) | TR |
| UPC | 00689604245415 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
DELPHI TA1545 Cross References
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-1766, 101-3317 |
| CORTECO | 49400931 |
| DORMAN | T2376, T2376XL, 534-386 |
| Deeza | TY-S608 |
| Import Direct | ER02001 |
| MAS Industries | T2376, 534-386 |
| MOOG | ES2376 |
| MOOG Chassis Products | ES2376 |
| Mcquay-Norris | ES2376 |
| Mevotech | MES2376 |
| N/A | GES2376, 534-386, 612.44172 |
| TRW | JTE469 |
| Toyota | 45046-29115, 45046-29125, 45046-39105, 45046-39106, 45046-39125, 45046-39135, 45046-39165, 45046-39175, 45046-39215, 45046-39235, 45046-39385, J45 046 391 75 |
| Volkswagen | J45 046 391 75, J45 046 392 35 |
DELPHI TA1545 Fits Vehicles
- Toyota T100 (1993-1998)
- Toyota Pickup (1979-1995)
- Toyota 4Runner (1986-1995)
DELPHI TA1545 Customer Reviews
No reviews yet
Be the first to review this product!
DELPHI TA1545 Questions & Answers
No questions yet
Be the first to ask a question about this product!
