Position(s)	Inner, Outer. For the position specific to your vehicle, refer to the Applications.
Item Grade	Standard Replacement
Color	Black
End 2 Gender	Female
Pre-Greased	Yes
Dust Boot Included	Yes
Width	41 MM
Type	Straight
Mounting Hardware Included	Yes
End 2 Thread Diameter	0.551 IN
End 2 Thread Diameter	14.00 MM
Height	80.00 MM
Housing Material	Steel
Tube Diameter	0.827 IN
Tube Diameter	21.00 MM
Adjustable	No
Weight	0.97 lb
Cone Outside Diameter	18.00 MM
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Counterclockwise (Left)
Stud Type	Threaded
End 2 Thread Pitch	1.5 MM
Length - Stud Center to End	2.953 IN
Length - Stud Center to End	75.00 MM
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 1 Thread Diameter	0.551 IN
End 1 Thread Diameter	14.00 MM
Shank Length	18.00 MM
Stud Length	18.00 MM
Grade Type	Standard
Grade	Premium
Shank Length	0.709 IN
Stud Length	0.709 IN
Cone Outside Diameter	0.709 IN

Harmonized Tariff Code (Schedule B)	8708998175
Harmonized Tariff Code (HTS)	8708998180
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
Country of Origin (Primary)	TR
UPC	00689604245293
VMRS Code	015004045
UNSPSC	25174205

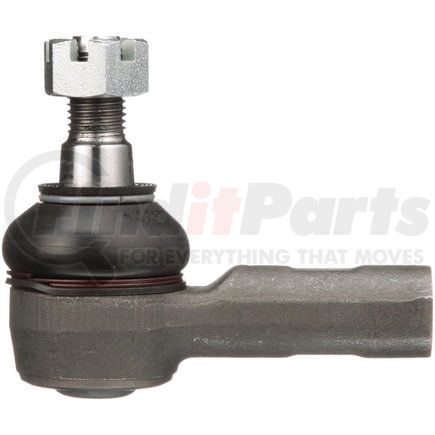

Delphi TA1501 - Tie Rod End

Tie Rod End
