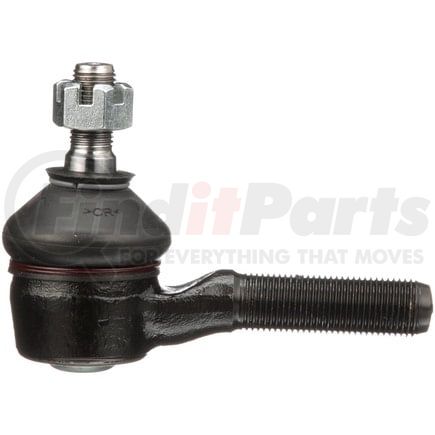

(888) 312-8812 Login SignupDELPHI TA1196 Tie Rod End
Tap to view 2 more
SHIPS TODAY
MSRP: $22.20
$1849
Save $3.71
Limited availability at this price!
In Stock
Get it by Tuesday, Dec 16
DELPHI TA1196 Part Description
DELPHI TA1196 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Outer |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Dust Boot Included | Yes |
| Width | 40 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.630 IN |
| End 2 Thread Diameter | 16.00 MM |
| Height | 80.00 MM |
| Housing Material | Steel |
| Tube Diameter | 0.630 IN |
| Tube Diameter | 16.00 MM |
| Adjustable | No |
| Weight | 0.96 lb |
| Cone Outside Diameter | 16.05 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Counterclockwise (Left) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 3.583 IN |
| Length - Stud Center to End | 91.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.472 IN |
| End 1 Thread Diameter | 12.00 MM |
| Shank Length | 16.05 MM |
| Stud Length | 16.05 MM |
| Grade Type | Standard |
| Grade | Premium |
| Shank Length | 0.632 IN |
| Stud Length | 0.632 IN |
| Cone Outside Diameter | 0.632 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604244876 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
DELPHI TA1196 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-3643 |
| MOOG Chassis Products | ES2246L |
| Mevotech | MES2246L |
| Chrysler | MB241171 |
| Mitsubishi | MB241171, MB315775, MR241032 |
| MAS Industries | T2246, 534-357 |
| TRW | JTE261 |
| N/A | GES2246L, T2246PR, 534-357 |
DELPHI TA1196 Fits Vehicles
- Mitsubishi Montero (1983-1991)
- Mitsubishi Mighty Max (1983-1994)
- Dodge Ram 50 (1983-1985, 1987-1993)
- Dodge Raider (1987-1989)
- Dodge Power Ram 50 (1983-1986)
- Chrysler Conquest (1989)
