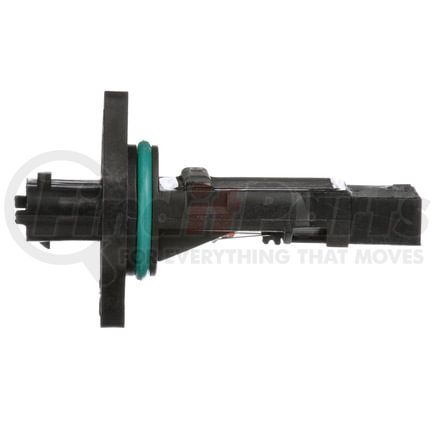

(888) 312-8812 Login SignupDELPHI AF10357 Mass Air Flow Sensor
$11149
Limited availability at this price!
5 Day Lead Time
Get it by Tuesday, Feb 24
DELPHI AF10357 Part Description
Manufacturer
Product Description
Mass Air Flow Sensor
Features & Benefits
- Delphi mass air flow sensors are the global benchmark for accuracy and signal noise
- Delphi mass air flow sensors feature high quality sensing elements for outstanding performance over a wide range of ambient temperatures
- Delphi is a manufacturer of OE mass air flow sensors since their first use over 30 years ago
- All parts are calibrated and tested to match the OE part
- Probe solution offered wherever possible to reduce repair time by eliminating the need to replace the flow tube
- Delphi OE technology validated to match the vehicle applications
DELPHI AF10357 Specifications
Product Attributes
| Package Contents | Mass Air Flow Sensor - Probe Only |
| Item Grade | Premium |
| Color | Black |
| Housing Included | No |
| Terminal Type | Blade |
| Mounting Hardware Included | No |
| Universal Or Specific Fit | Specific |
| Grade Type | Standard Replacement |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Mounting Hole Quantity | 2 |
| Terminal Quantity | 5 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Type | Bolt-On |
| Mounting Bracket Included | No |
| Sensor Casing Length | 60 MM |
| Sensor Casing Width | 37.5 MM |
| Voltage | 12.0 2H |
| Gasket Or Seal Included | Yes |
| Bolt Hole Center To Bolt Hole Center | 47.00 MM |
| Mounting Hole Diameter | 0.2 IN |
| Seal Outside Diameter | 34.8 mm |
| Seal Quantity | 1 |
| Sensor Casing Length | 2.3 IN |
| Sensor Casing Width | 1.4 IN |
| Bolt Hole Center To Bolt Hole Center | 1.80 IN |
| Mounting Hole Diameter | 5.6 MM |
| Seal Outside Diameter | 1.3 IN |
| Intake Air Temperature (IAT) Included | Yes |
Additional Information
| Warranty Distance UOM | DH |
| Warranty Distance | 12000 |
| Harmonized Tariff Code (Schedule B) | 9026800000 |
| Warranty Time UOM | MO |
| Warranty Time | 12 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 9026204000 |
| UPC | 00689604272176 |
| VMRS Code | 045021019 |
| UNSPSC | 41111931 |
DELPHI AF10357 Cross References
| Brand | Part Number |
|---|---|
| Bosch | 0280218109 |
| CARDONE Reman | 74-10137 |
| Dorman | 917-1020 |
| GLOBAL PARTS DISTRIBUTORS | 1813139 |
| N/A | MQ6229, 245-1233 |
| NAPA Reman Computers | XTP410137 |
| NGK SPARK PLUGS | MG0029 |
| NTK | MG0029 |
| Richporter | MA244 |
| SPECTRA PREMIUM | MA244S |
| STANDARD IGNITION | MAS0436 |
| Spectra Premium | MA244 |
| Standard Motor Products | MAS0436 |
| Volvo | 8670113, 8670113-0 |
| WAI | MAF10161 |
| Wells | SU5868 |
DELPHI AF10357 Fits Vehicles
- Volvo S80 (1999-2001)
