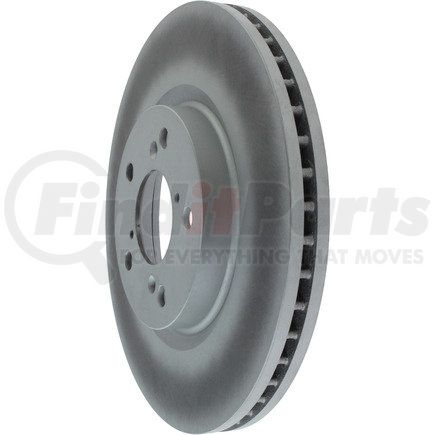

(888) 312-8812 Login SignupCENTRIC 320.40075 Centric GCX Rotor with Partial Coating
Tap to view 4 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 320.40075 Part Description
Manufacturer
Product Description
Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.40075 Specifications
Product Attributes
| Weight [cntrc] Kgs | 9.640 |
| Product Grade [cntrc] | Premium |
| Misc Holes [cntrc] | 4 |
| Weight [cntrc] Lbs | 21.200 |
| Vane Style [cntrc] | Straight |
| Disc Mounting [cntrc] | Floating |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Discard Thickness | 26.000 MM |
| Discard Thickness | 1.024 IN |
| Nominal Thickness | 1.102 IN |
| Nominal Thickness | 28.000 MM |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 47.500 MM |
| Overall Height | 1.870 IN |
| Outside Diameter | 320.000 MM |
| Outside Diameter | 12.598 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.764 IN |
| Center Hole Diameter | 70.200 MM |
| Mounting Bolt Hole Circle Diameter | 120.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14.600 MM |
| Stud/Lug Hole Diameter | 0.575 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590250633 |
CENTRIC 320.40075 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 980738, 980738FZN, 980738R |
| N/A | 90059056, HC5521294X |
CENTRIC 320.40075 Cross References
We have 3 alternatives for the 320.40075 by CENTRIC:
