(888) 312-8812 Login SignupCENTRIC 320.39033 Centric GCX Rotor with Partial Coating
Tap to view 4 more
No Stock Available
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
CENTRIC 320.39033 Part Description
Manufacturer
Product Description

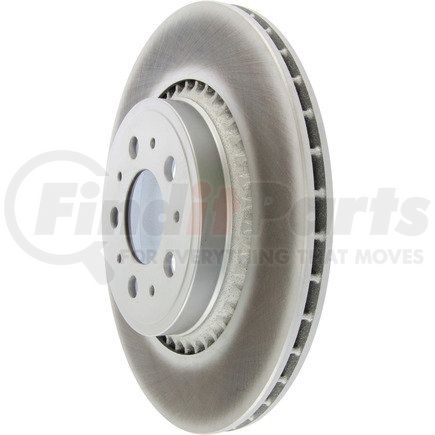

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.39033 Specifications
Product Attributes
| Vane Style [cntrc] | Straight |
| Misc Holes [cntrc] | 5 |
| Disc Mounting [cntrc] | Floating / DIH |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Lbs | 16.000 |
| Weight [cntrc] Kgs | 7.270 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Discard Thickness | 0.709 IN |
| Discard Thickness | 18.000 MM |
| Nominal Thickness | 20.000 MM |
| Nominal Thickness | 0.787 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 64.800 MM |
| Overall Height | 2.551 IN |
| Outside Diameter | 12.114 IN |
| Outside Diameter | 307.700 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 178.000 MM |
| Nominal Drum Diameter | 7.008 IN |
| Bearings Included | No |
| Center Hole Diameter | 68.000 MM |
| Center Hole Diameter | 2.677 IN |
| Mounting Bolt Hole Circle Diameter | 108.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 16.800 MM |
| Stud/Lug Hole Diameter | 0.661 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590250350 |
CENTRIC 320.39033 Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 980276FZN, 980276R, 980276 |
| N/A | 90027039, HC34256X |
CENTRIC 320.39033 Cross References
We have 3 alternatives for the 320.39033 by CENTRIC:
