DELPHI part description

Product Description

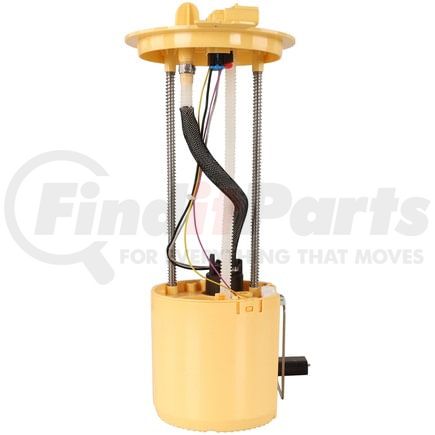

Fuel Pump Module Assembly

Product Attributes

Item Grade Standard Replacement
System Pressure 65 psi
Fuel Level Sender Assembly Included Yes
Vapor Pressure Sensor No
Package Contents Fuel Pump Module Assembly w/Float Arm, Seal, Instruction Sheet
Outlet Outside Diameter 0.375 IN
Voltage 12.0 2H
Fuel Type Diesel
Regulator Included No
Maximum Pressure 102.0 PS
Terminal Type Blade
Gasket Or Seal Included Yes
Terminal Quantity 4
Lock Ring Included No
Terminal Gender Male
Strainer Included Yes
Inlet Type Strainer
Outlet Type Quick Connect
Outlet Quantity 2
In Tank or External In Tank
Resistance Ohms Empty 950.0 82
Resistance Ohms Full 50.0 82
Internal Or External Strainer Internal
Pump Type Electric
Average Current Draw 18.0 68
Average Flow Rating 37.0 GPH

Additional Information

Harmonized Tariff Code (Schedule B) 8413309000
Harmonized Tariff Code (HTS) 8413309030
Warranty Special Limited Lifetime
Warranty Special UOM LF
Country of Origin (Primary) CN
UPC 00689604271988
VMRS Code 044003258
UNSPSC 25172409

Part Interchanges

Fits Vehicles

  • Ram 1500 Classic (2019)
  • Ram 1500 (2014-2018)
