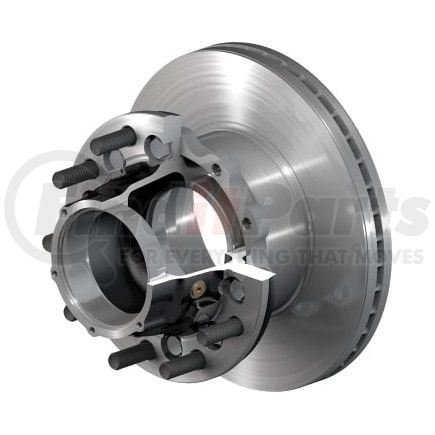

Need help? We're here!
(888) 312-8812 Login SignupCONMET 10083515 Iron Conventional Hub/Rotor TP Trailer
$83399
Limited availability at this price!
In Stock
CONMET 10083515 Part Description
Manufacturer
Product Description
Iron Conventional Hub/Rotor TP Trailer
Features & Benefits
- HP10 mounting system pilots the wheel on the hub across 10 studs
- Carries M22 x 1.5 wheel studs on an 11.25-inch bolt circle
- Accepts steel disc wheels with a 2.72-inch stud standout
- Combined weight of 137 pounds covers both the iron hub and rotor
ConMet Disc Brake Rotor and Hub Assembly
A heat-cracked or worn-out rotor on a TP trailer axle is exactly what the ConMet Disc Brake Rotor and Hub Assembly is built to fix. Because the U-section rotor and iron hub come as one unit, the replacement goes on without separating an old rotor from its hub. Rated at 12,500 pounds per hub, the conventional assembly sits on a 1.79-inch flange offset for trailer disc brake wheel ends. The ConMet 10083515 puts the U-section rotor and hub into a single replacement assembly for that trailer wheel end.
CONMET 10083515 Specifications
Product Attributes
| Axle | TP |
| Axle Position | Trailer |
| Bearing Number Inboard - 246 | HM518410 |
| Bearing Number Outboard - 245 | HM518410 |
| Brake Type | Disc |
| Flange Offset | 1.79 IN |
| Hub Mounting System | HP10 |
| Hub Rating | 12500 PG |
| Lead Time | 5 days |
| Material | Iron |
| Weight | 137.0 PG |
| Wheel Stud Bolt Circle Diameter | 11.25 IN |
| Wheel Stud Standout | 2.72 IN |
| Wheel Stud Thread | M22 X 1.5 mm MM |
Additional Information
| Country of Origin (Primary) | US |
| UPC | 00810004771116 |
| VMRS Code | 018004039 |
