(888) 312-8812 Login SignupRAYBESTOS 681782 Raybestos Specialty - Truck Coated Brake Rotor
$15199
Limited availability at this price!
In Stock
Get as soon as Friday, Sep 18
RAYBESTOS 681782 Part Description
Manufacturer
Product Description

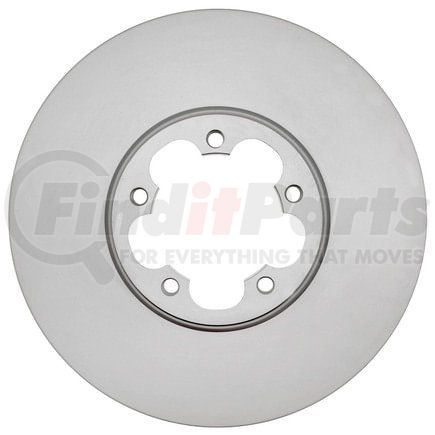

Raybestos Specialty - Truck Coated Brake Rotor
Application Summary
2023-2015 Ford Transit-350 HD Front
Features & Benefits
- OE Fit, Form, and Function
- Our vehicle-specific design matches OE fit, form and function, providing ultimate strength and performance
- Cooling Vanes
- We dedicate time to match the cooling vanes on our Specialty rotors to OE designs, ensuring: Optimal cooling Reduced fade Less noise Increased pad life
- Coating
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0® rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- All Specialty rotors are protected against the elements. All new Specialty rotors come fully coated with Grey Fusion 4.0(R) rated at 300 hrs. salt spray or a Black Fusion painted hat and edge for rust protection.
- SAE Standard for Tensile Strength
- Our rotors follow SAE standards for tensile strength, hardness, and iron grade, providing structural integrity and maximum service life
- Turned Finish
- A turned finish provides an excellent surface for the pads to engage with to ensure a smooth and effective stop right out of the box
RAYBESTOS 681782 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Bolt Thread Pitch | 0.059 IN |
| Bolt Thread Pitch | 1.5 MM |
| Center Hole Diameter | 3.661 IN |
| Center Hole Diameter | 93 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 1.102 IN |
| Discard Thickness | 28 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 6.457 IN |
| Inside Diameter | 164 MM |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.472 IN |
| Mounting Bolt Hole Diameter | 12 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.221 IN |
| Nominal Thickness | 31 MM |
| Outside Diameter | 12.122 IN |
| Outside Diameter | 307.9 MM |
| Overall Height | 2.398 IN |
| Overall Height | 60.9 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213172850 |
RAYBESTOS 681782 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH527282, YH527282C, YH527282P |
| AUTOZONE | 75033, 75033DG, 75033DL |
| BRAKEBEST | 621690RGS, 681782, 681782FZN, 681782R |
| Bosch | 20011576 |
| CENTRIC | 121.65148, 125.65148, 320.65148H |
| Centric Parts | 121.65148, 125.65148, 320.65148H |
| DURA CORP | BR901390 |
| DuraGo | BR901390, BR901390-02 |
| Dynamic Friction Company | 600-54230 |
| FORD | 1822205, CK4Z1125B, CK4Z1125D, CK4Z1125G, CK4Z1125K |
| Ford | KK311125AB |
| MAGMA PRODUCTS | PSR205262 |
| MOTORCRAFT | BRRF429 |
| Motorcraft | BRRF299 |
| NAPA BRAKES | SDK6820 |
| NEOTEK | 1071145GF |
| NEWTEK AUTOMOTIVE | R1390 |
| Newtek Automotive USA | R1390 |
| POWERSTOP | AR85177EVC |
| PROMAX | 14-640004 |
| Qualis | 42312 |
| TopNotch | TN681782GEO |
| WAGNER BRAKE | BD180674 |
| WORLDPAC | 1407-527282, 1427-719677 |
| Wagner Brake | BD180674E |
| Winhere | 6621690 |
RAYBESTOS 681782 Fits Vehicles
- Ford Transit-350 (2021-2025)
- Ford Transit-250 (2020-2025)
- Ford Transit-150 (2023-2025)
- Ford Transit-350 HD (2015-2025)
RAYBESTOS 681782 Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 681782 Questions & Answers
No questions yet
Be the first to ask a question about this product!
