(888) 312-8812 Login SignupRAYBESTOS 680931 Raybestos Specialty - Street Performance Coated Brake Rotor
$67.83
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 680931 Part Description
Manufacturer
Product Description

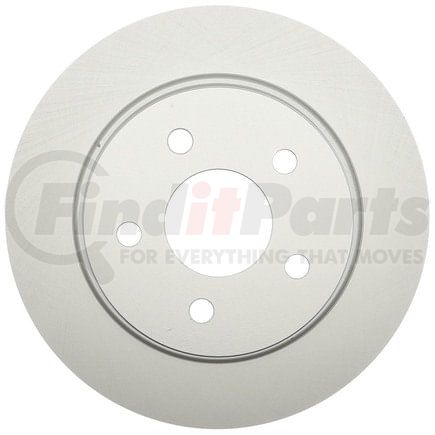

Raybestos Specialty - Street Performance Coated Brake Rotor
Application Summary
2018-2012 Ford Focus Rear
Features & Benefits
- Application Specific Enhanced Iron
- Raybestos® Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Raybestos(R) Performance Rotors are made with enhanced iron which suppresses noise and keeps brakes running cool, quiet and vibration free.
- Cooling Vanes
- The cooling vanes match OE configurations and provide optimal cooling and reduced fade.
- Application Specific Coating
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0® coating on the entire rotor
- Depending on the application, Performance Rotors will have one of the following finishes: Black fusion coating on the rotor hat Grey Fusion 4.0(R) coating on the entire rotor
- Black fusion coating on the rotor hat and Grey Fusion 4.0® coating on the rotor inboard surface and cooling vanes
- Black fusion coating on the rotor hat and Grey Fusion 4.0(R) coating on the rotor inboard surface and cooling vanes
- Turned Finish
- Turned finish minimizes noise and improves responsiveness for smoother stops.
- S-Groove Slot
- Depending on the application, some Raybestos® Performance Rotors are designed with a patented S-Groove Slot.
- Depending on the application, some Raybestos(R) Performance Rotors are designed with a patented S-Groove Slot.
RAYBESTOS 680931 Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.5 IN |
| Center Hole Diameter | 63.5 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.354 IN |
| Discard Thickness | 9 MM |
| Harmonize Code | 8708.30.5030 |
| Inside Diameter | 7.205 IN |
| Inside Diameter | 183 MM |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Mounting Bolt Hole Circle Diameter | 108 MM |
| Mounting Bolt Hole Diameter | 0.54 IN |
| Mounting Bolt Hole Diameter | 13.7 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.429 IN |
| Nominal Thickness | 10.9 MM |
| Outside Diameter | 10.665 IN |
| Outside Diameter | 270.9 MM |
| Overall Height | 1.6 IN |
| Overall Height | 40.65 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213170535 |
RAYBESTOS 680931 Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH324572, YH324572C, YH324572P |
| AUTOPARTSOURCE | 492126 |
| AUTOXTRA | AX901068 |
| AUTOZONE | 54460, 54460DG, 54460DL |
| BENDIX | PRT6133 |
| BOSCH | 20011532 |
| BRAKEBEST | 20011532, 680931, 680931FZN, 680931R, 680931RGS |
| CENTRIC | 120.61099, 120.61099CRY, 121.61099, 126.61099CSL, 126.61099CSR, 126.61099SL, 126.61099SR, 127.61099L, 127.61099R, 128.61099CL, 128.61099CR, 128.61099L, 128.61099R, 320.61099, 320.61099F |
| Centric Parts | 120.61099, 120.61099CRY, 121.61099, 126.61099CSL, 126.61099CSR, 126.61099SL, 126.61099SR, 127.61099L, 127.61099R, 128.61099CL, 128.61099CR, 128.61099L, 128.61099R, 320.61099, 320.61099F |
| DURA CORP | BR901068, BR90106802 |
| DuraGo | 901068, BR901068, BR90106802 |
| FORD | BV6Z2C026A, BV6Z2C026C, CV6Z2C026A, ED8C2A315AA |
| MAGMA PRODUCTS | PSR203086 |
| MONROE BRAKES | BD180488 |
| Motorcraft | NBRR98, NBRR99 |
| NEOTEK | 1071107GF |
| NEWTEK AUTOMOTIVE | 54182 |
| Newtek Automotive USA | 54182 |
| POWERSTOP | AR85145EVC |
| PROMAX | 14-54182 |
| PRONTO | BR901068 |
| Qualis | 42280 |
| TopNotch | TN680931GEO |
| UAP | 2901068, R61099 |
| Ultra Brake | 54522 |
| WAGNER BRAKE | BD180488, R61099 |
| WINHERE | 661939 |
| WORLDPAC | 1407-324572, 1427-731865 |
| Wagner Brake | BD180488E |
RAYBESTOS 680931 Fits Vehicles
- Ford Focus (2012-2018)
