BCA WE61563 Part Description
Manufacturer
Product Description

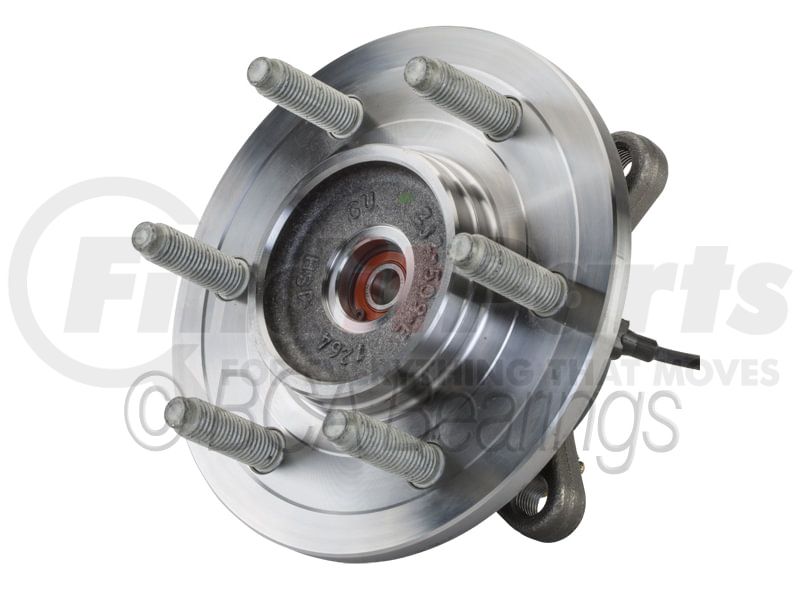

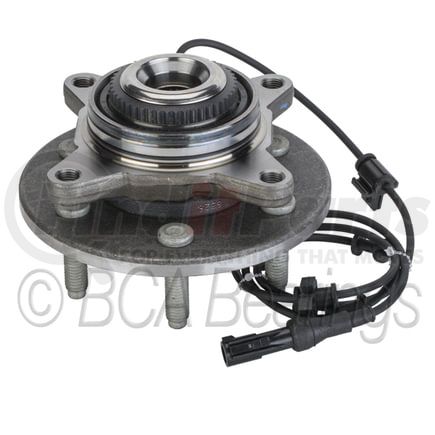

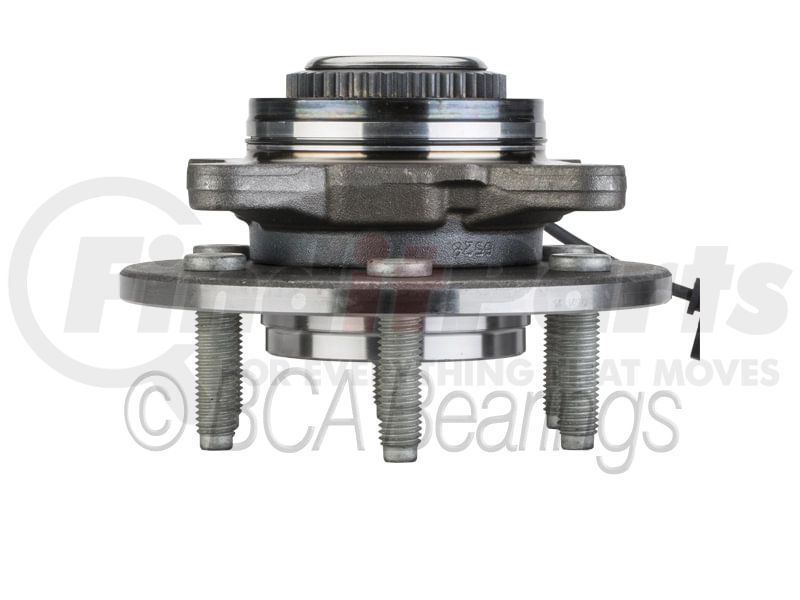

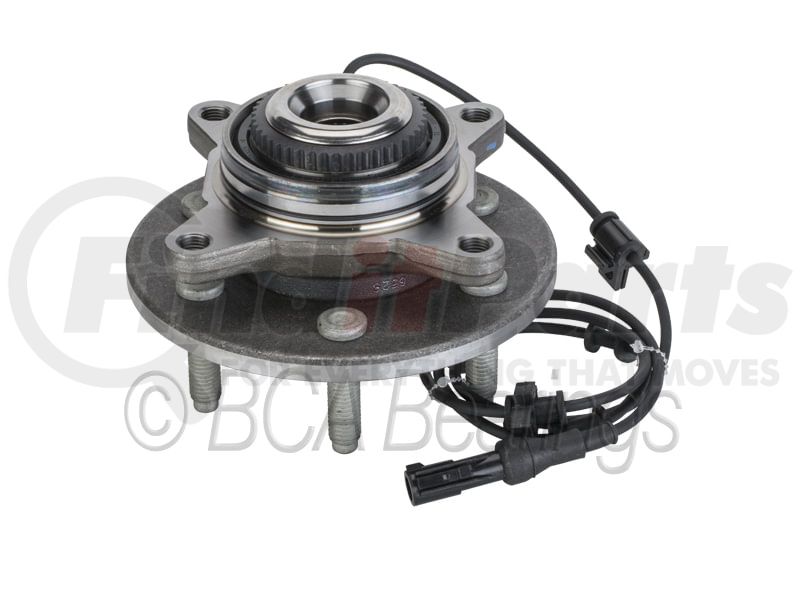

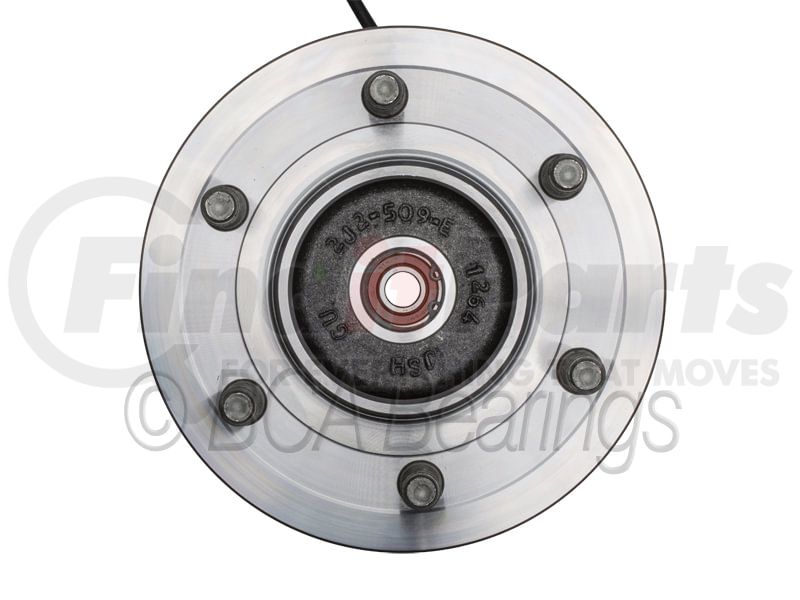

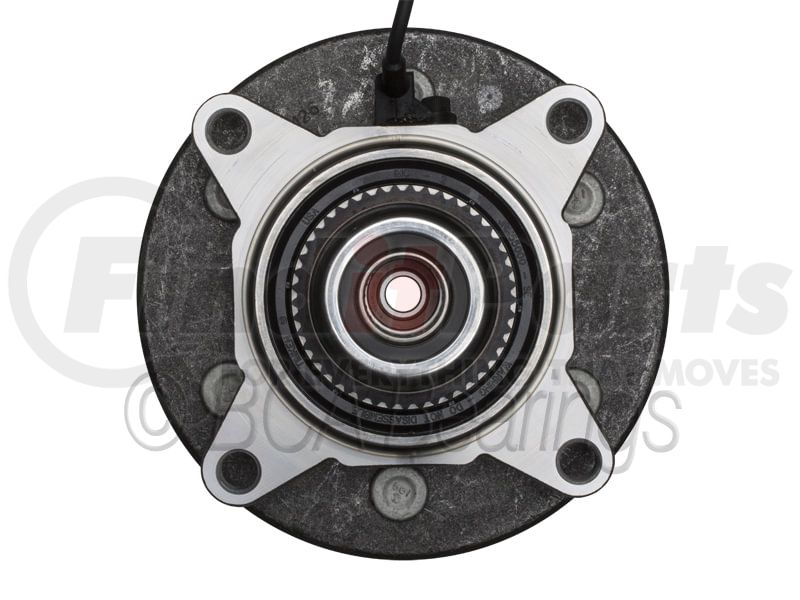

Gen 3 Wheel Hub Assembly
Features & Benefits
- All BCA applications that require ABS functionality utilize our custom-designed seals that are molded over with magnetic encoders (if required) to ensure proper ABS operation.
- Forged-steel construction provides the toughness and durability required for even the harshest applications.
- Rolling element cages reduce friction by keeping rolling elements spaced correctly, preventing damage and resulting in reduced operational temperatures.
- Application-specific components to ensure proper connection and performance of the ABS module and sensors.
- Pre-lubricated bearings, sealed for life with specialized grease provide longer life and a wider range of operational temperatures.
- Application-specific engineering reduces noise, vibration and harshness (NVH).
BCA WE61563 Specifications
Product Attributes
| Knuckle Pilot Hole Diameter | 3.9 IN |
| Knuckle Bolt Circle Diameter | 160.5 MM |
| Knuckle Bolt Hole Size | 14 MM |
| Flange Quantity | 2 |
| 10496 | 1.5 MM |
| Flange Included | Yes |
| Flange Bolt Hole Quantity | 4 |
| Wheel Stud Size | 14 MM |
| Wheel Pilot Diameter | 86.8 MM |
| Brake Pilot Diameter | 3.543 IN |
| Wheel Stud Quantity | 6 |
| Flange Shape | Square |
| Anti Lock Braking System | Yes |
| Anti Lock Braking System Type | Tone Ring with Sensor |
| Bearing Generation | Gen 3 |
| Drive Type | Non-driven |
| Bearing Type | Taper |
| Flange Offset | 1.791 IN |
| Flange Diameter | 183 MM |
| Wheel Stud Thread Pitch | 2 MM |
| Bolt Circle Diameter | 5.276 IN |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (Schedule B) | 8708995800 |
| Harmonized Tariff Code (HTS) | 8708995800 |
| Warranty Time | 12 |
| Warranty Time UOM | MO |
| UPC | 00662810615630 |
| VMRS Code | 018005000 |
BCA WE61563 Cross References
| Brand | Part Number |
|---|---|
| Alltech Automotive | 515043 |
| Autopart International | 141109931 |
| CENTRIC | 402.65005 |
| CRS Automotive | NT515043 |
| Centric Parts | 402.65005E, 402.65005 |
| DT Components | 515043 |
| Dorman | 951-805 |
| Drive Tech America | NT515043 |
| DuraGo | 29515043 |
| Fenco | WH515043 |
| Ford | 2L1Z1215BA, 6L142B663DB, 6L141A148BA, 5L142B663DC, 6L1Z1215BA, 2L142B663BJ, 6L142B663DA, 6L1Z1104E, 5L142B663DB, 2L1Z1104BA, 5L142B663DE, 6L1Z1104DA, 2L1Z1104DA, 5L1Z1104DA, 2L142B663DA |
| GMB | 7990164 |
| GSP | 116043 |
| MOOG Chassis Products | 515043 |
| MPA | WH515043 |
| Mevotech | H515043 |
| Motorcraft | HUB275, HUB23 |
| Parts Master | PM515043 |
| Parts Plus | P515043 |
| Power Train | PT515043 |
| Precision Bearing | 515043 |
| Raybestos Brakes | 715043 |
| SKF | BR930453 |
| Schaeffler | 102183, FW743 |
| Timken | SP550202 |
| WJB | WA515043 |
BCA WE61563 Fits Vehicles
- Suzuki Aerio (2002)
