(888) 312-8812 Login SignupRAYBESTOS 980424FZN Raybestos Element3 Coated Brake Rotor
$7599
Limited availability at this price!
1 Day Lead Time
Get it by Monday, Aug 17
RAYBESTOS 980424FZN Part Description
Manufacturer
Product Description

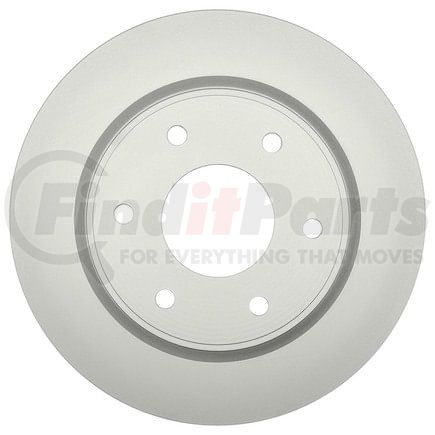

Raybestos Element3 Coated Brake Rotor
Application Summary
2007-2005 Nissan TITAN Front, 2006-2005 Nissan Armada Front, 2006-2005 INFINITI QX56 Front
Features & Benefits
- Grey Fusion 4.0(R) Coating
- Grey Fusion 4.0® Coating
- Grey Fusion 4.0(R) coating provides optimal corrosion resistance and faster brake jobs.
- Grey Fusion 4.0® coating provides optimal corrosion resistance and faster brake jobs.
- RPT(R) Rust Prevention Technology
- RPT® Rust Prevention Technology
- RPT(R) Rust Prevention Technology for long lasting rust prevention.
- RPT® Rust Prevention Technology for long lasting rust prevention.
- Cooling Vanes
- Cooling vanes are coated to ensure vanes remain clear of rust and corrosion for optimal airflow and cooling.
- OE Matched
- OE Matched precision and performance.
- Non-Directional Finish
- A non-directional ground finish provides a product that is ready to install right out of the box.
RAYBESTOS 980424FZN Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 3.232 IN |
| Center Hole Diameter | 82.1 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.965 IN |
| Discard Thickness | 24.5 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 5.5 IN |
| Mounting Bolt Hole Circle Diameter | 139.7 MM |
| Mounting Bolt Hole Diameter | 0.654 IN |
| Mounting Bolt Hole Diameter | 16.6 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 1.025 IN |
| Nominal Thickness | 26.05 MM |
| Outside Diameter | 12.597 IN |
| Outside Diameter | 319.95 MM |
| Overall Height | 1.7 IN |
| Overall Height | 43.2 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 6 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213146035 |
RAYBESTOS 980424FZN Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | YH145735C, YH145735P |
| ADVICS | B6F054U |
| AUTOXTRA | AX900286 |
| AUTOZONE | 44573, DL31425 |
| Autoxtra | AX900286P |
| BENDIX | PRT5735 |
| BOSCH | 40011050, 40011101 |
| BRAKEBEST | 40011050, 40011101, 980424, 980424FZN, 980424R, 980424RGS |
| BREMBO | 09.B639.10 |
| CENTRIC | 120.42090, 121.42090, 125.42090, 125.42090CRY, 126.42090CSL, 126.42090CSR, 126.42090SL, 126.42090SR, 127.42090CL, 127.42090CR, 127.42090L, 127.42090R, 128.42090CL, 128.42090CR, 128.42090L, 128.42090R, 227.42090L, 227.42090R, 320.42090, 321.42090, 120.4209 |
| Casting Numbers | 211783-C, 326297 |
| Centric Parts | 120.42090, 121.42090, 125.42090, 125.42090CRY, 126.42090CSL, 126.42090CSR, 126.42090SL, 126.42090SR, 127.42090CL, 127.42090CR, 127.42090L, 127.42090R, 128.42090CL, 128.42090CR, 128.42090L, 128.42090R, 227.42090L, 227.42090R, 320.42090, 321.42090 |
| DATSUN/NISSAN | 40206ZC00A, 40206ZC00B, 40206ZC01A |
| DURA CORP | BR31425, BR900286 |
| DuraGo | 60301, 900286, BR60301, BR900286, BR900286-02 |
| NEWTEK AUTOMOTIVE | 31425 |
| Newtek Automotive USA | 31425 |
| Nissan | 40206ZC00A, 40206ZC00B, 40206ZC01A |
| POWERSTOP | JBR1161EVC |
| PROMAX | 14-31425 |
| QUALIS | 44573 |
| TRUSTAR | 476235 |
| UAP | 31425 |
| WABCO | PS126575 |
| WABCO - Archived | PS126575 |
| WAGNER BRAKE | BD126575 |
| WINHERE | 6620681 |
| WORLDPAC | 1407-77136, 1427-530172 |
| Wagner Brake | BD126575E |
RAYBESTOS 980424FZN Fits Vehicles
- Nissan TITAN (2005-2007)
- Nissan Armada (2005-2006)
- INFINITI QX56 (2005-2006)
