RAYBESTOS 980340FZN Part Description
Manufacturer
Product Description

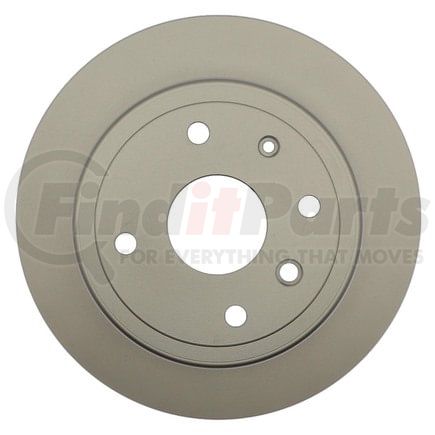

Raybestos Element3 Coated Brake Rotor
Application Summary
2006-2004 Chevrolet Optra Rear, 2006-2004 Suzuki Verona Rear, 2009,2006-2004 Chevrolet Epica Rear
Features & Benefits
- Grey Fusion 4.0(R) Coating
- Grey Fusion 4.0® Coating
- Grey Fusion 4.0(R) coating provides optimal corrosion resistance and faster brake jobs.
- Grey Fusion 4.0® coating provides optimal corrosion resistance and faster brake jobs.
- RPT(R) Rust Prevention Technology
- RPT® Rust Prevention Technology
- RPT(R) Rust Prevention Technology for long lasting rust prevention.
- RPT® Rust Prevention Technology for long lasting rust prevention.
- Cooling Vanes
- Cooling vanes are coated to ensure vanes remain clear of rust and corrosion for optimal airflow and cooling.
- OE Matched
- OE Matched precision and performance.
- Non-Directional Finish
- A non-directional ground finish provides a product that is ready to install right out of the box.
RAYBESTOS 980340FZN Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.363 IN |
| Center Hole Diameter | 60 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Discard Thickness | 0.394 IN |
| Discard Thickness | 10 MM |
| Harmonize Code | 8708.30.5030 |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.495 IN |
| Mounting Bolt Hole Diameter | 12.55 MM |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.472 IN |
| Nominal Thickness | 12 MM |
| Outside Diameter | 10.865 IN |
| Outside Diameter | 275.95 MM |
| Overall Height | 2.29 IN |
| Overall Height | 58.15 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 4 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| Canadian Harmonizing Tariff Code | 8708309990 |
| UPC | 00887213145861 |
RAYBESTOS 980340FZN Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | 145624, YH145624, YH145624C |
| AUTOPARTSOURCE | 478140 |
| AUTOXTRA | 80980340, AX900644 |
| AUTOZONE | 31391, 31391DG, DL31391 |
| BENDIX | 145624 |
| BOSCH | 25010702 |
| BRAKEBEST | 25010702, 980340, 980340FZN, 980340R, 980340RGS |
| BREMBO | 27313 |
| CENTRIC | 120.49007, 121.49007, 127.49007L, 127.49007R |
| Casting Numbers | 211711-C, 326193, R96328254TY1 |
| Centric Parts | 120.49007, 121.49007, 127.49007L, 127.49007R |
| DURA CORP | BR31391, BR900644 |
| DuraGo | 900644, BR31391, BR900644 |
| GM | 96328254 |
| General Motors | 96328254 |
| MIGHTY DISTRIBUTING SYSTEM | 31391 |
| NEWTEK AUTOMOTIVE | 31391 |
| Newtek Automotive USA | 31391 |
| PROMAX | 14-31391 |
| Qualis | 31391 |
| SUZUKI | 5561186Z00 |
| UAP | 31391 |
| Ultra Brake | 55181 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51726 |
| WAGNER BRAKE | BD126261 |
| WINHERE | 661704 |
RAYBESTOS 980340FZN Fits Vehicles
- Chevrolet Epica (2004-2006, 2009)
- Chevrolet Optra (2004-2006)
- Suzuki Verona (2004-2006)
