(888) 312-8812 Login SignupRAYBESTOS 780144FZN Raybestos Element3 Coated Brake Rotor
$6249
Limited availability at this price!
1 Day Lead Time
Get it by Wednesday, Aug 5
RAYBESTOS 780144FZN Part Description
Manufacturer
Product Description

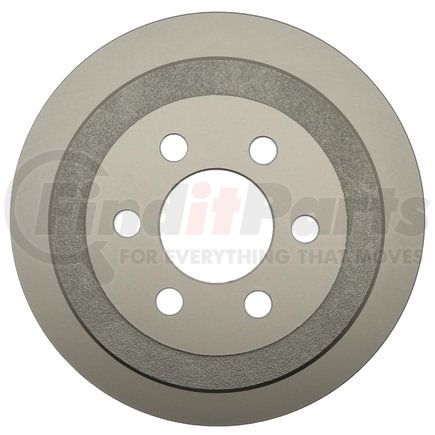

Raybestos Element3 Coated Brake Rotor
Application Summary
2004-2003 Dodge Dakota Rear
Features & Benefits
- Grey Fusion 4.0® Coating
- Grey Fusion 4.0(R) Coating
- Grey Fusion 4.0® coating provides optimal corrosion resistance and faster brake jobs.
- Grey Fusion 4.0(R) coating provides optimal corrosion resistance and faster brake jobs.
- RPT® Rust Prevention Technology
- RPT(R) Rust Prevention Technology
- RPT® Rust Prevention Technology for long lasting rust prevention.
- RPT(R) Rust Prevention Technology for long lasting rust prevention.
- Cooling Vanes
- Cooling vanes are coated to ensure vanes remain clear of rust and corrosion for optimal airflow and cooling.
- OE Matched
- OE Matched precision and performance.
- Non-Directional Finish
- A non-directional ground finish provides a product that is ready to install right out of the box.
RAYBESTOS 780144FZN Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.84 IN |
| Center Hole Diameter | 72.15 MM |
| Conventional Or Drum-In-Hat Type Rotor | Drum-In-Hat |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.531 IN |
| Discard Thickness | 13.5 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.651 IN |
| Mounting Bolt Hole Diameter | 16.55 MM |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 0.59 IN |
| Nominal Thickness | 15 MM |
| Outside Diameter | 12.28 IN |
| Outside Diameter | 311.9 MM |
| Overall Height | 3.21 IN |
| Overall Height | 81.55 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 6 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213091564 |
RAYBESTOS 780144FZN Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | 145420, YH145420, YH145420C |
| AUTOXTRA | 126115 |
| AUTOZONE | 53013 |
| BENDIX | 145420 |
| BOSCH | 16010187 |
| BRAKEBEST | 16010187, 780144, 780144FZN, 780144R, 780144RGS, BD126044 |
| BREMBO | 27381 |
| CENTRIC | 120.67058, 121.67058, 125.67058, 126.67058CSL, 126.67058CSR, 126.67058SL, 126.67058SR, 127.67058L, 127.67058R, 128.67058CL, 128.67058CR, 128.67058L, 128.67058R, 320.67058, 320.67058F |
| CENTURY | C7113 |
| CHRYSLER | 52010235AA, 52010235AB, 52010235AC, 52010235AD |
| Casting Numbers | 204262701, 211492-C, 325616 |
| Centric Parts | 120.67058, 121.67058, 125.67058, 126.67058CSL, 126.67058CSR, 126.67058SL, 126.67058SR, 127.67058L, 127.67058R, 128.67058CL, 128.67058CR, 128.67058L, 128.67058R, 320.67058, 320.67058F |
| DURA CORP | BR53013 |
| DuraGo | BR53013 |
| GUARDIAN | 52-126044 |
| MIGHTY DISTRIBUTING SYSTEM | 53013 |
| MONROE BRAKES | BD126044 |
| NEWTEK AUTOMOTIVE | 53013 |
| Newtek Automotive USA | 53013 |
| Omnicraft | QBRR20 |
| POWERSTOP | AR8762EVC |
| PROMAX | 14-53013 |
| QUALIS | 53013 |
| QUALITY BRAND | Q4174 |
| STANDARD ROTORS AND DRUMS | 53013 |
| UAP | 53013 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X51644 |
| WABCO | PS53013 |
| WABCO - Archived | PS53013 |
| WAGNER BRAKE | BD126044 |
| WINHERE | 441445 |
| WORLDPAC | 1407-25856 |
| Wagner Brake | BD126044E |
RAYBESTOS 780144FZN Fits Vehicles
- Dodge Dakota (2003-2004)
RAYBESTOS 780144FZN Customer Reviews
No reviews yet
Be the first to review this product!
RAYBESTOS 780144FZN Questions & Answers
No questions yet
Be the first to ask a question about this product!
