(888) 312-8812 Login SignupRAYBESTOS 96318FZN Raybestos Element3 Coated Brake Rotor
$36.95
MSRP Pricing shown.
Out of Stock
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
We may have similar parts for sale. Search Alternatives >
RAYBESTOS 96318FZN Part Description
Manufacturer
Product Description

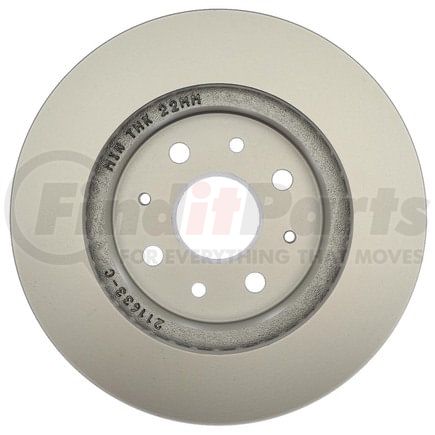

Raybestos Element3 Coated Brake Rotor
Application Summary
2003-2001 Mazda Protege Front, 2002-1993 Mazda 626 Front, 2003-2002 Mazda Protege5 Front, 1997-1993 Ford Probe Front, 1997-1993 Mazda MX-6 Front
Features & Benefits
- Grey Fusion 4.0® Coating
- Grey Fusion 4.0(R) Coating
- Grey Fusion 4.0® coating provides optimal corrosion resistance and faster brake jobs.
- Grey Fusion 4.0(R) coating provides optimal corrosion resistance and faster brake jobs.
- RPT® Rust Prevention Technology
- RPT(R) Rust Prevention Technology
- RPT® Rust Prevention Technology for long lasting rust prevention.
- RPT(R) Rust Prevention Technology for long lasting rust prevention.
- Cooling Vanes
- Cooling vanes are coated to ensure vanes remain clear of rust and corrosion for optimal airflow and cooling.
- OE Matched
- OE Matched precision and performance.
- Non-Directional Finish
- A non-directional ground finish provides a product that is ready to install right out of the box.
RAYBESTOS 96318FZN Specifications
Product Attributes
| ABS Tone Ring Included | No |
| Center Hole Diameter | 2.84 IN |
| Center Hole Diameter | 72.15 MM |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Directional or Non-Directional Brake Surface | Non-Directional |
| Discard Thickness | 0.866 IN |
| Discard Thickness | 22 MM |
| Harmonize Code | 8708.30.5030 |
| Material | Cast Iron |
| Mounting Bolt Hole Circle Diameter | 4.5 IN |
| Mounting Bolt Hole Circle Diameter | 114.3 MM |
| Mounting Bolt Hole Diameter | 0.509 IN |
| Mounting Bolt Hole Diameter | 12.95 MM |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.945 IN |
| Nominal Thickness | 24 MM |
| Outside Diameter | 10.16 IN |
| Outside Diameter | 258.05 MM |
| Overall Height | 1.91 IN |
| Overall Height | 48.5 MM |
| Salability Restrictions | No |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| UNSPSC Code | 25171715 |
Additional Information
| Country of Origin (Primary) | CN |
| Canadian Harmonizing Tariff Code | 8708309990 |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 00887213145281 |
RAYBESTOS 96318FZN Cross References
| Brand | Part Number |
|---|---|
| ADVANCE AUTO PARTS | 141845, YH141845, YH141845C |
| ALTROM IMPORTS | A31052 |
| AMERICAN REMANUFACTURED | 789-14049, 89-14049 |
| AUTOPART INTERNATIONAL | 78441 |
| AUTOSPECIALTY | JBR577, JBR577E |
| AUTOXTRA | 125274, 8096318, AX31052 |
| AUTOZONE | 31052, 31052B, 31052DG, DL31052 |
| BECK/ARNLEY | 080-2522, 083-2522, 083-2782 |
| BENDIX | 141845 |
| BOSCH | 34010875, 34010871, RBR31052 |
| BRAKE HEADQUARTERS | BR08307 |
| BRAKE PRO | 4616318 |
| BRAKEBEST | 34010871, 34010875, 81-125274, 96318, 96318FZN, 96318R, 96318RGS, BD125274 |
| BREMBO | 09.5584.10, 25349 |
| Brembo | 09.5584.11 |
| Bridgestone | 7002420 |
| CALIFORNIA DRUM & ROTOR | 125274 |
| CENTRIC | 120.45048, 120.45048CRY, 121.45048, 125.45048, 126.45048CSL, 126.45048CSR, 126.45048SL, 126.45048SR, 127.45048L, 127.45048R, 127.45048CL, 127.45048CR, 128.45048CL, 128.45048CR, 128.45048L, 128.45048R, 227.45048L, 227.45048R, 320.45048F, 320.45048, 321.45048 |
| CENTURY | 9823 |
| CONTINENTAL-CONTITECH | CW24129 |
| Casting Numbers | 210571-C, 211518-DP, 310521, 325014, GA5Y |
| Centric Parts | 120.45048, 120.45048CRY, 121.45048, 125.45048, 126.45048CSL, 126.45048CSR, 126.45048SL, 126.45048SR, 127.45048CL, 127.45048CR, 127.45048L, 127.45048R, 128.45048CL, 128.45048CR, 128.45048L, 128.45048R, 227.45048L, 227.45048R, 320.45048, 320.45048F, 321.45048 |
| DELPHI | RB375 |
| DURA CORP | BR31052 |
| DuraGo | BR31052 |
| EIS BRAKES | D17663 |
| EUROROTOR | MA850 |
| FORD | 3395510, F32Z1125A |
| GREN | 644702 |
| GUARDIAN | 52-125274 |
| INTERBRAKES | MZ701V |
| MAZDA | GA2Y3325X, GA2Y3325XA, GA3Y3325XA, GA4Y3325XJ, GAZY3325X |
| MCI | 3870 |
| MIDAS | BR1853 |
| MIGHTY DISTRIBUTING SYSTEM | 31052 |
| MONROE BRAKES | BD125274 |
| MOTORCRAFT | BRR49 |
| NAPA BRAKES | TSR950 |
| NEWTEK AUTOMOTIVE | 31052 |
| Newtek Automotive USA | 31052 |
| PARTS MASTER | P125274 |
| POWERSTOP | JBR577EVC |
| PROMAX | 14-31052 |
| QUALIS | 31052 |
| QUALITEE INTERNATIONAL | 64-74-460, 64-75-460 |
| QUALITY BRAND | 31052, Q4053 |
| QUINTON HAZELL | BDC3951 |
| ROADMATES | 526224 |
| STANDARD ROTORS AND DRUMS | 31052 |
| THE UNIVERSAL GROUP | 112521 |
| TRUSTAR | 474460, 475460, R74460, R75460 |
| TRW | DF2704S |
| TopNotch | TN96318GEO |
| UAP | 31052 |
| Ultra Brake | MA-850 |
| Universal | 112521 |
| VIPAR - VEHICLE INDUSRTY PARTS & MANUFACTURING | X50722 |
| WABCO | PS125274 |
| WABCO - Archived | PS125274 |
| WAGNER BRAKE | BD125274 |
| WINHERE | 442076, YH2076 |
| WORLDPAC | 1407-78441 |
| Wagner Brake | BD125274E |
RAYBESTOS 96318FZN Fits Vehicles
- Mazda Protege5 (2002-2003)
- Mazda 626 (1993-2002)
- Mazda Protege (2001-2003)
- Mazda MX-6 (1993-1997)
- Ford Probe (1993-1997)
